Products
Precision RF and microwave components engineered for satellite, radar, defense, and telecommunications applications.
23 products
BJ320(WR28) Waveguide Rotary Joint
Ka-band waveguide rotary joint covering 31–39.5 GHz with low insertion loss (≤0.3 dB) and low VSWR (≤1.2), designed for continuous signal transmission in rotating assemblies.
X-band Cavity Filter
X-band cavity filter centered at 8.43 GHz with 40 MHz bandwidth, ≤0.5 dB insertion loss, and >100 dB out-of-band rejection. SMA Female interface, compact aluminum housing.
C-band Transmit-Receive Antenna
Integrated C-band transmit/receive antenna with circular polarization, covering TX bands 3.2–4.2 GHz and 5.5–5.7 GHz, RX band 5.85–6.455 GHz. ≥60 dB TX/RX isolation, wide ±65° beamwidth.

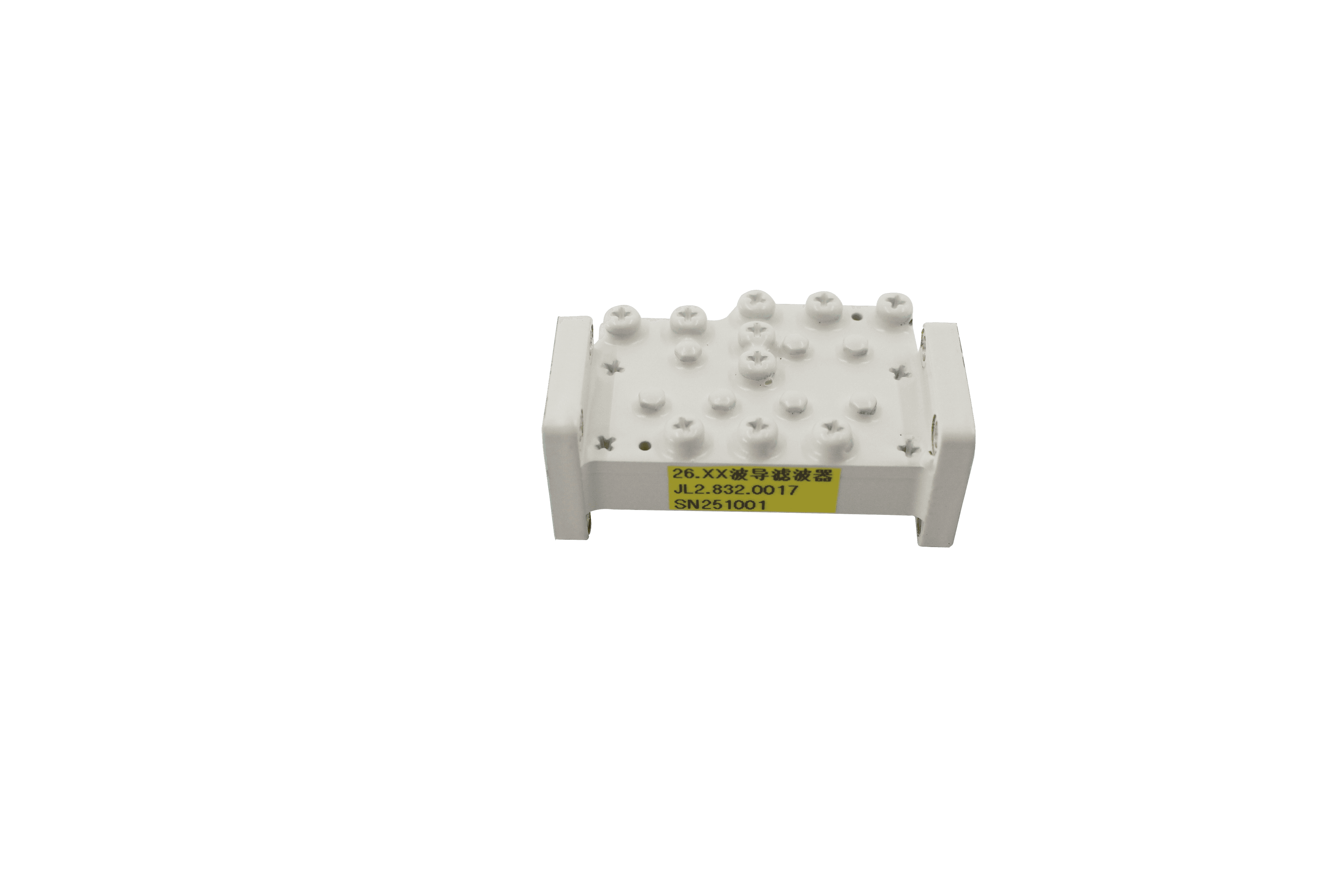

BJ260(WR34) Waveguide Filter
Ka-band waveguide filter centered at 26.4 GHz with ±25 MHz 1 dB bandwidth, ≤3.0 dB insertion loss, and high out-of-band rejection up to ≥60 dB. BJ260(WR34) interface, aluminum housing.
QV Band RF Front-End Module
Spaceborne QV/V-band RF front-end module supporting multi-beam uplink (47.2–49.2 GHz) and downlink (37.5–40.0 GHz) with ≥38.5 dBm output power, EVM ≤8%, and radiation-hardened design (TID ≥43 krad).
QV Band Waveguide Rotary Joint
QV-band dual-channel waveguide rotary joint covering 37–50 GHz with ≤0.3 dB insertion loss, ≤1.25 VSWR, and just 60 g weight. Designed for spaceborne QV-band feed antenna systems.
S-band Transmit-Receive Antenna
Integrated S-band TX/RX antenna covering TX bands 2200–2480 MHz and 3200–3300 MHz, RX band 2018–2120 MHz. Circular polarization, ≥58 dB isolation, wide ±65° beamwidth, SMA Female interfaces.
X-band Transmit-Receive Antenna
Compact X-band TX/RX antenna: TX 7250–9600 MHz (RHCP), RX 7145–7235 MHz (LHCP), ≥40 dB isolation, ≥7 dBi boresight gain, wide ±65° beamwidth. 70.2 × 30.2 × 26.3 mm.

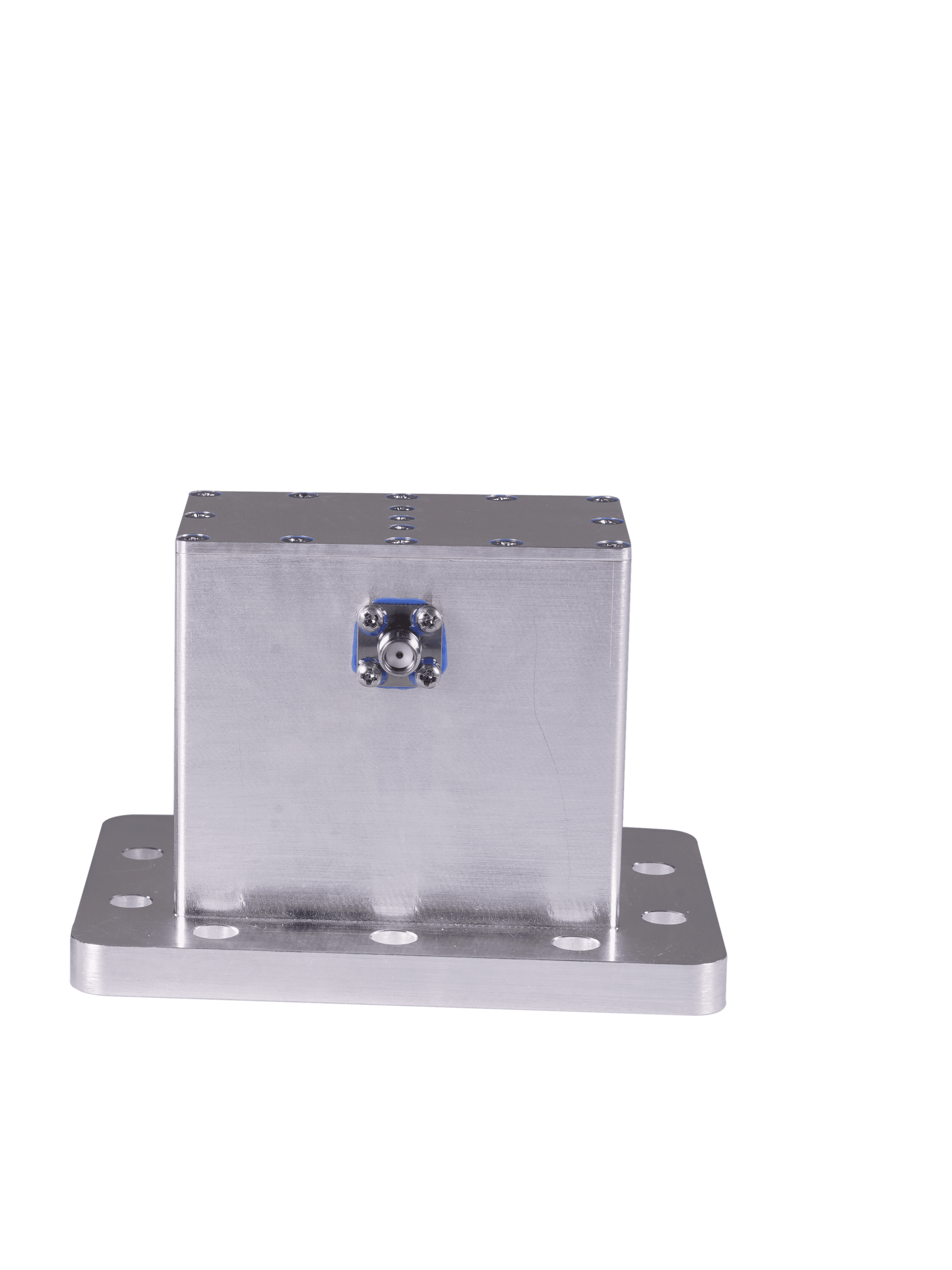

BJ40(WR229) Waveguide to Coax Adapter
C-band waveguide-to-coaxial adapter covering 3.22–4.9 GHz with ≤0.15 dB insertion loss and ≤1.25:1 VSWR. BJ40(WR229) waveguide and SMA Female interfaces. Full bandwidth, 300 g.

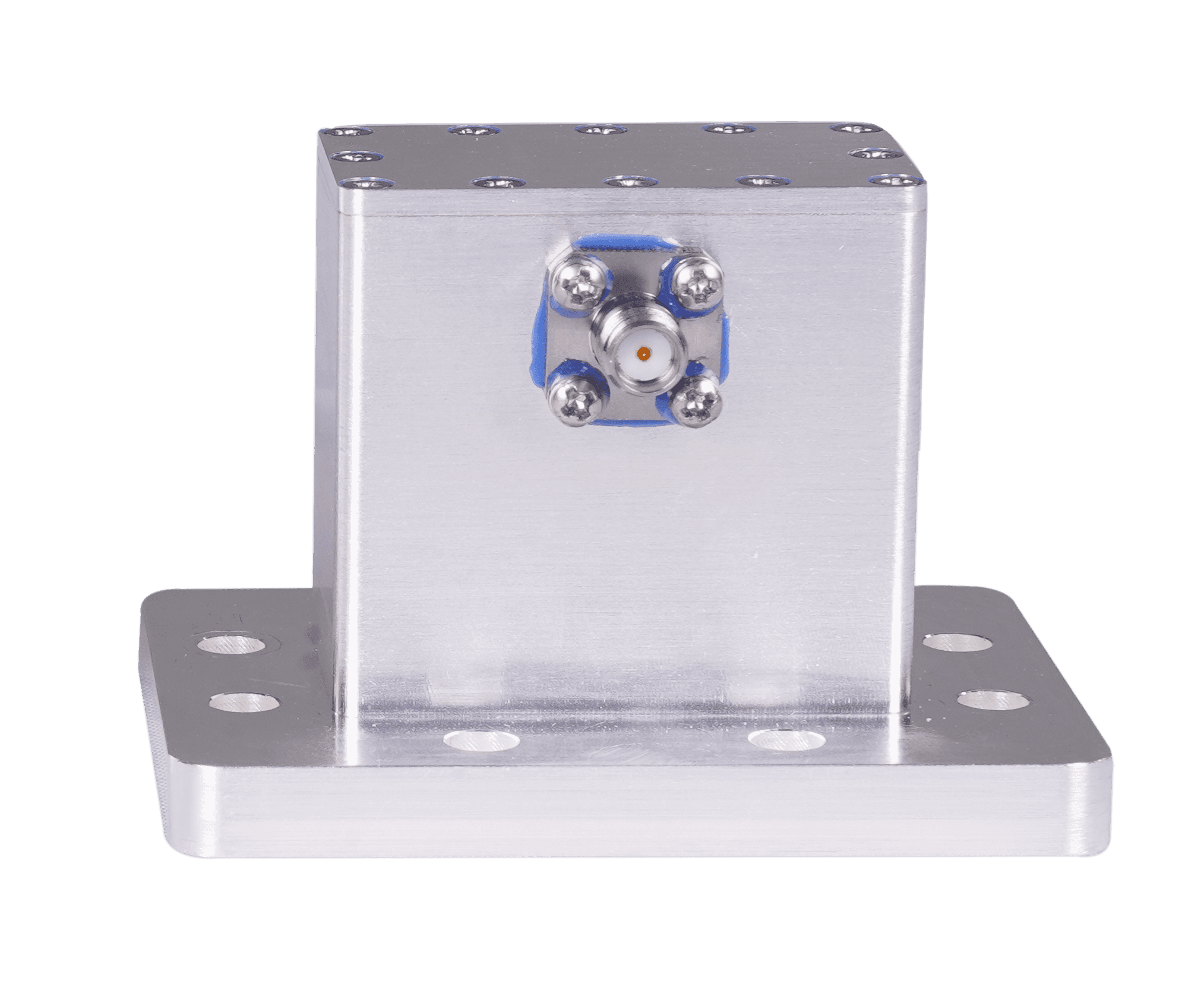

BJ70(WR137) Waveguide to Coax Adapter
C/X-band waveguide-to-coaxial adapter covering 5.38–8.17 GHz with ≤0.15 dB insertion loss and ≤1.2:1 VSWR. BJ70(WR137) waveguide and SMA Female interfaces. 112 g.

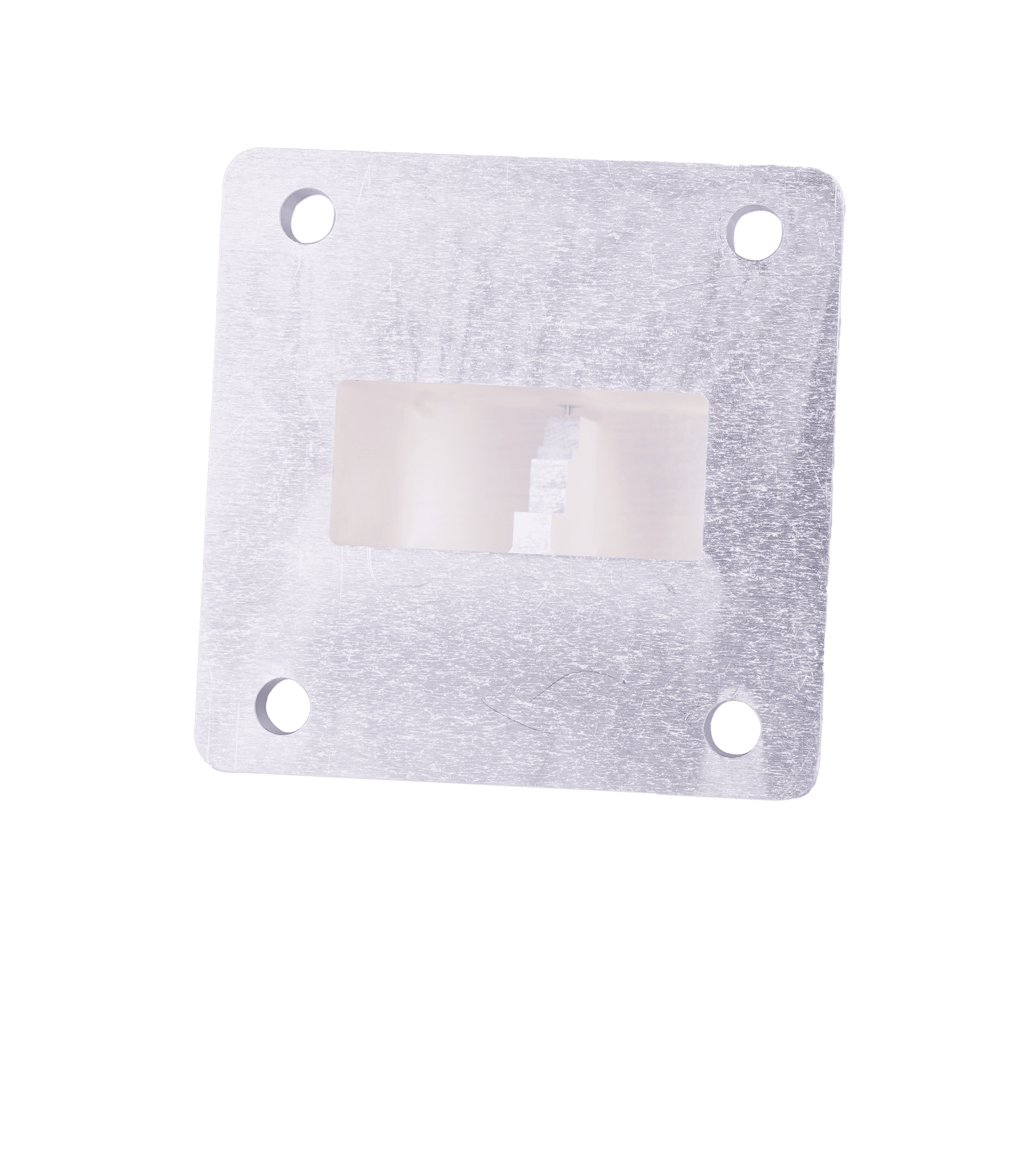

BJ84(WR112) Waveguide to Coax Adapter
X-band waveguide-to-coaxial adapter covering 6.57–9.99 GHz with ≤0.15 dB insertion loss and ≤1.2:1 VSWR. BJ84(WR112) waveguide and SMA Female interfaces. 75 g.

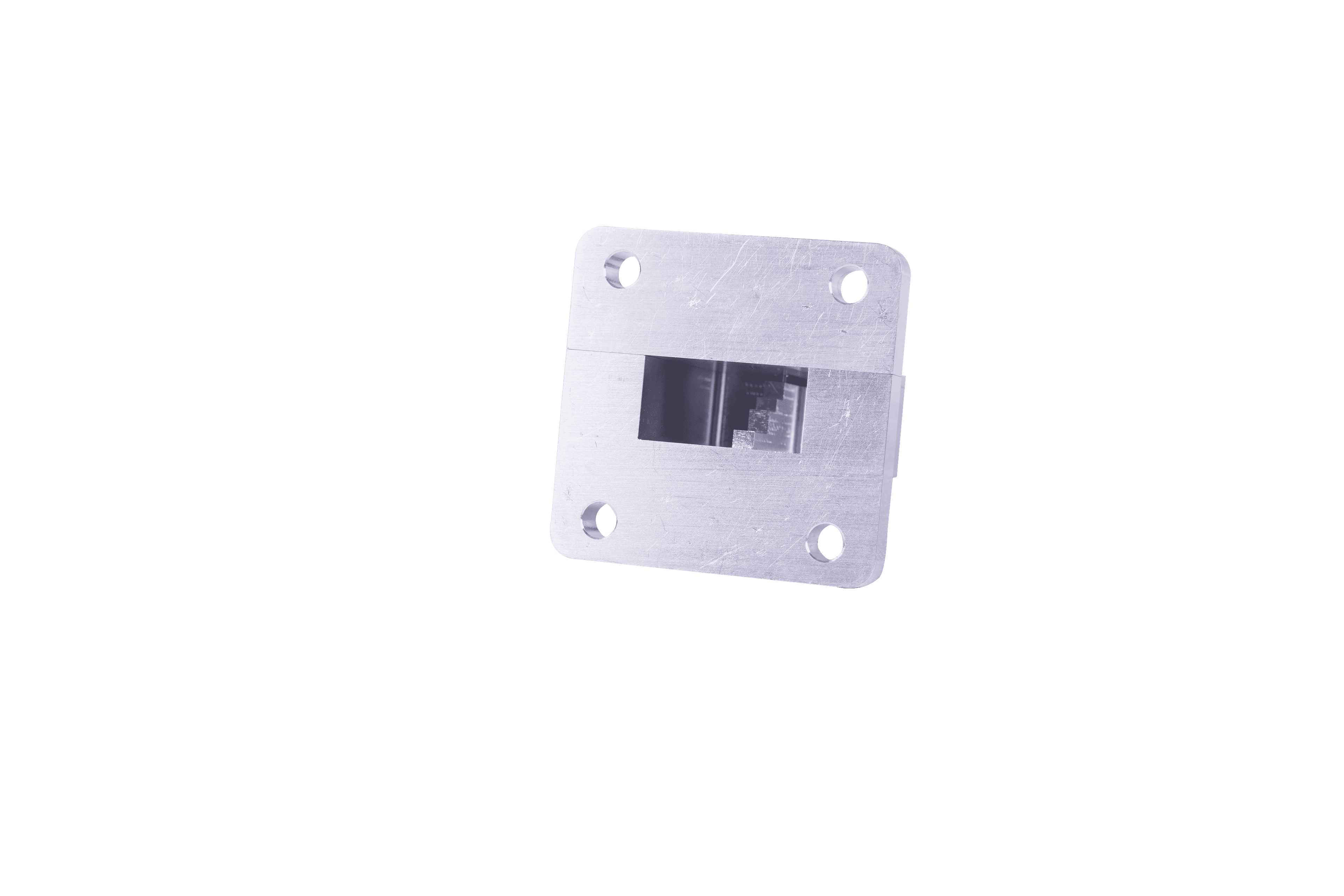

BJ120(WR75) Waveguide to Coax Adapter
Ku-band waveguide-to-coaxial adapter covering 9.84–15 GHz with ≤0.15 dB insertion loss and ≤1.2:1 VSWR. BJ120(WR75) waveguide and SMA Female interfaces. 38 g.

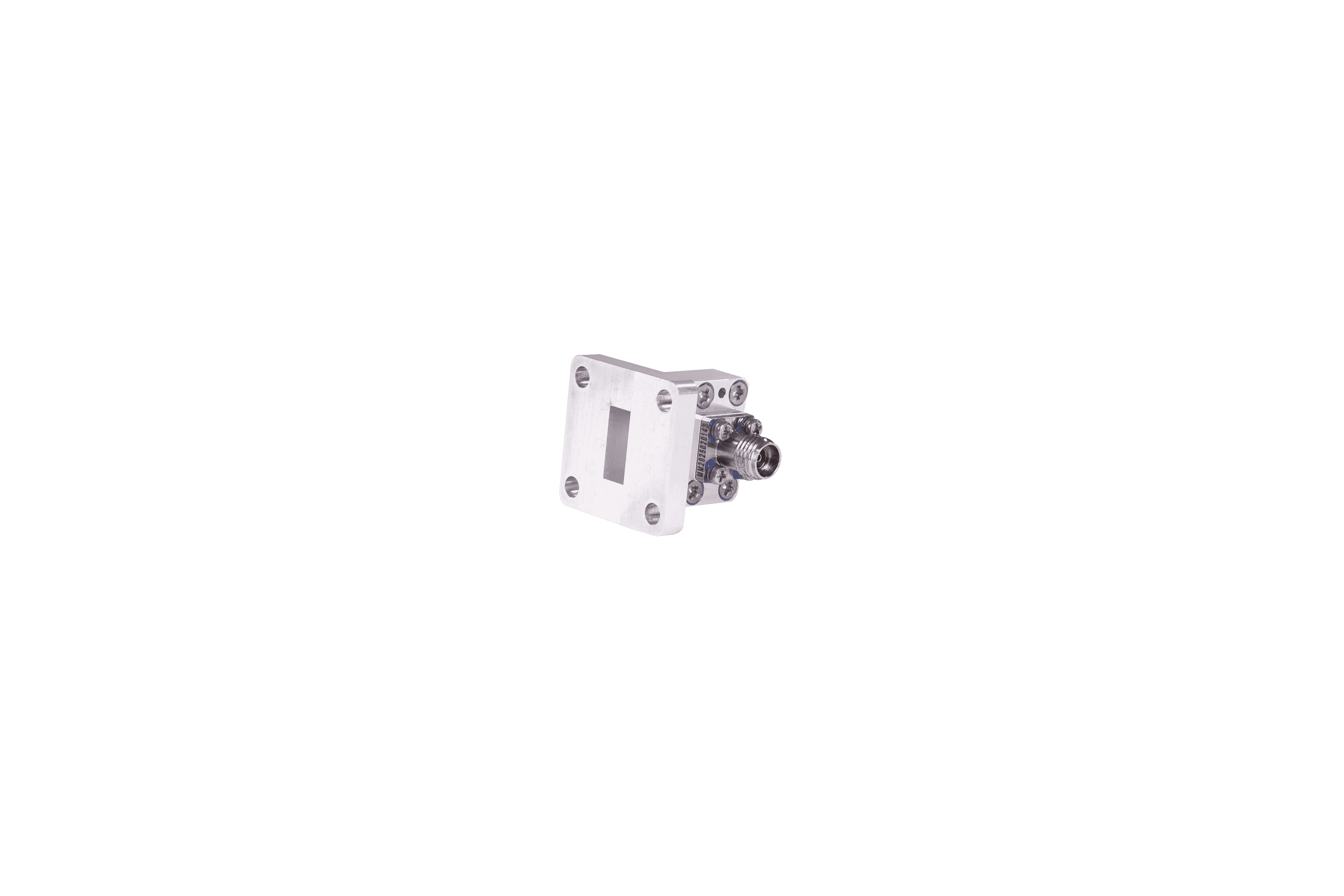

BJ220(WR42) Waveguide to Coax Adapter
K-band waveguide-to-coaxial adapter covering 17.6–26.7 GHz with ≤0.15 dB insertion loss and ≤1.2:1 VSWR. BJ220(WR42) waveguide and 2.92 mm Female interfaces. 15 g.

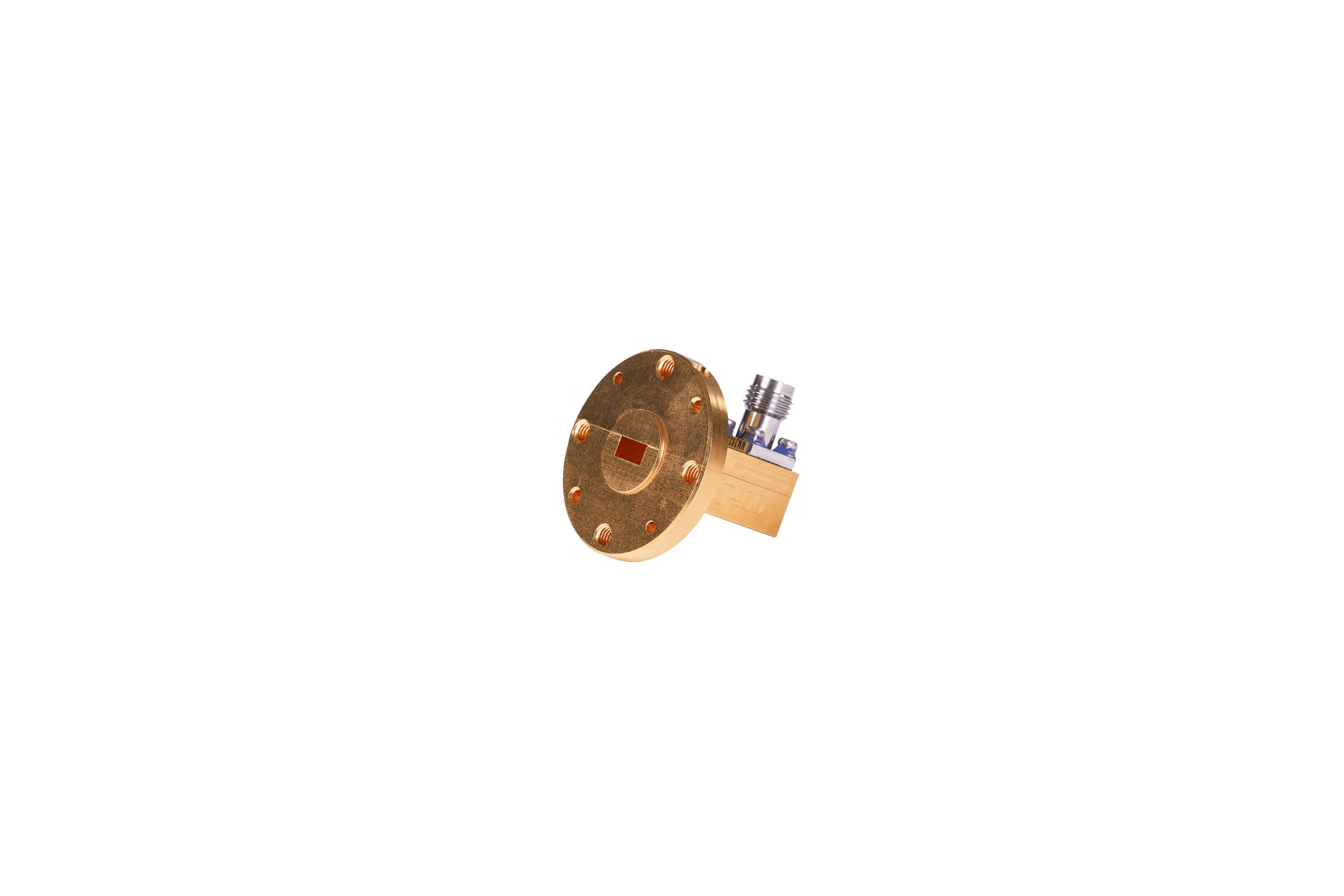

BJ400(WR22) Waveguide to Coax Adapter
V-band waveguide-to-coaxial adapter covering 32.9–50.1 GHz with ≤0.15 dB insertion loss and ≤1.2:1 VSWR. BJ400(WR22) waveguide and 2.4 mm Female interfaces. 40 g.

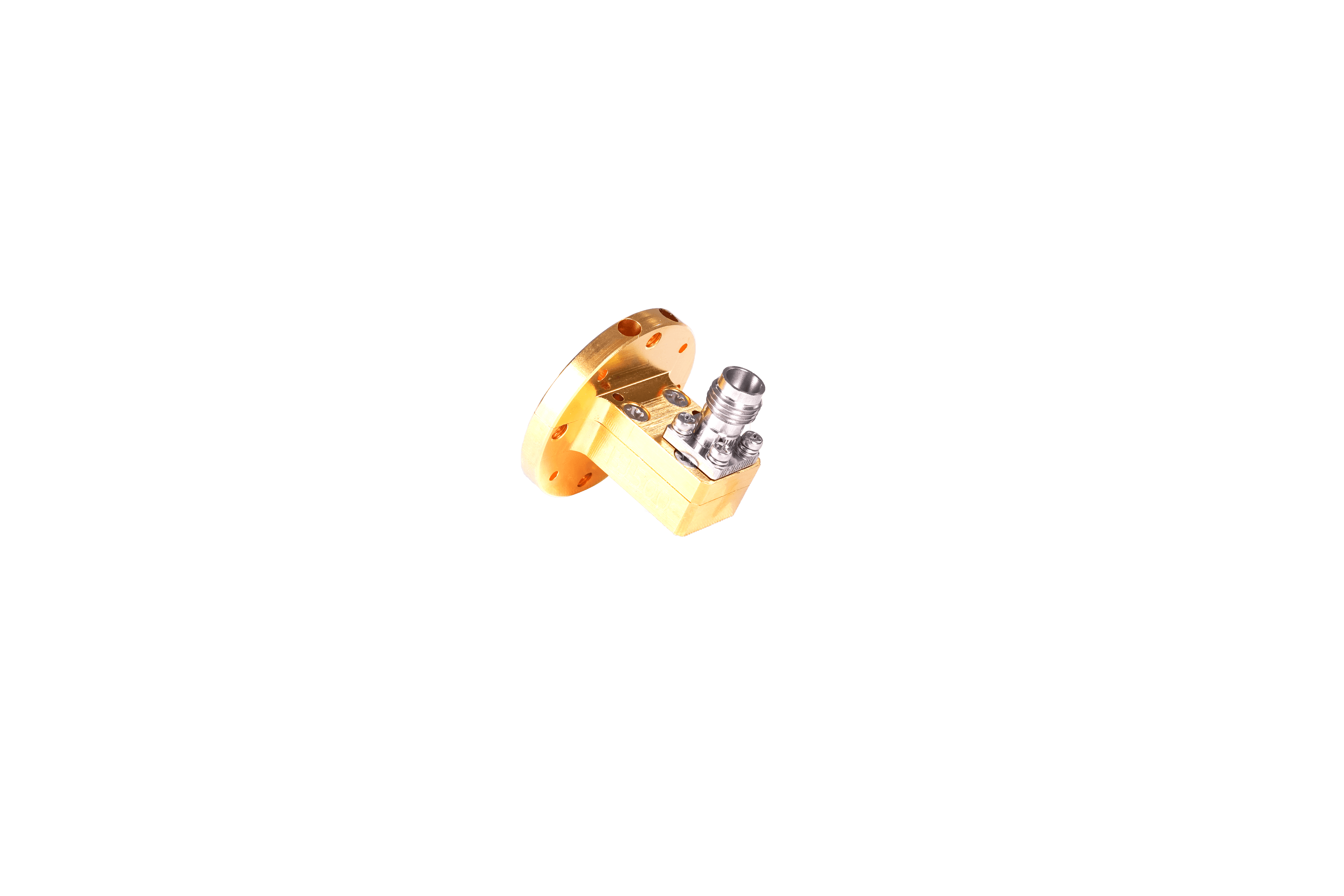

BJ500(WR19) Waveguide to Coax Adapter
V-band waveguide-to-coaxial adapter covering 39.2–59.6 GHz with ≤0.15 dB insertion loss and ≤1.2:1 VSWR. BJ500(WR19) waveguide and 1.85 mm Female interfaces. 38 g.

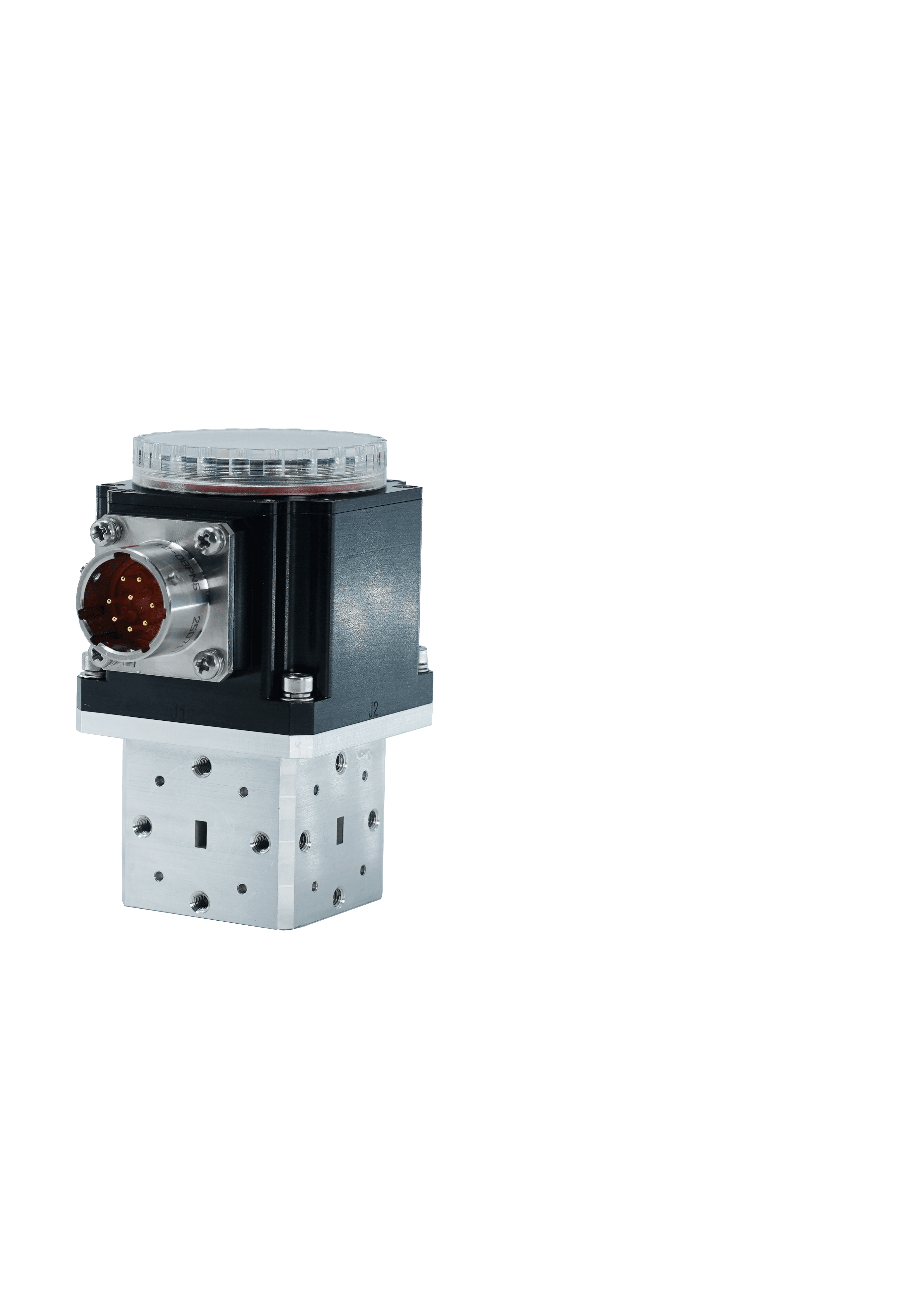

BJ500(WR19) Waveguide C-Type Switch
V-band waveguide C-type self-latching switch covering 39–59 GHz with ≤0.2 dB insertion loss, ≥80 dB isolation, and ≤1.2 VSWR. BJ500(WR19) interface, 0.45 kg, 28 V drive. Part No. J-600Q37B00.

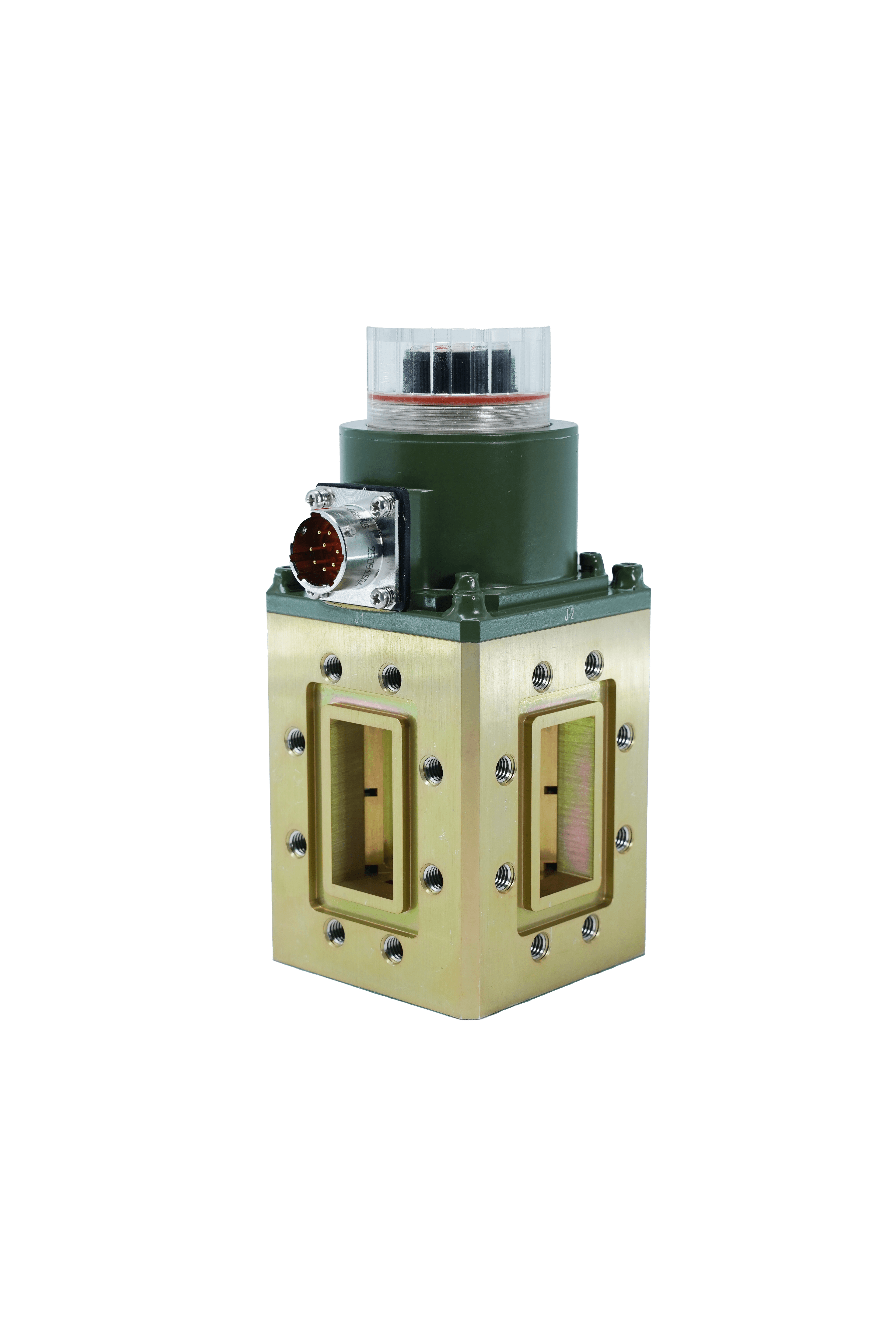

BJ58(WR159) Waveguide C-Type Switch
C/X-band waveguide C-type self-latching switch covering 4.35–6.6 GHz with ≤0.05 dB insertion loss, ≥85 dB isolation, and ≤1.1 VSWR. BJ58(WR159) interface, 1.15 kg, 24 V drive. Part No. J-610F20B20.

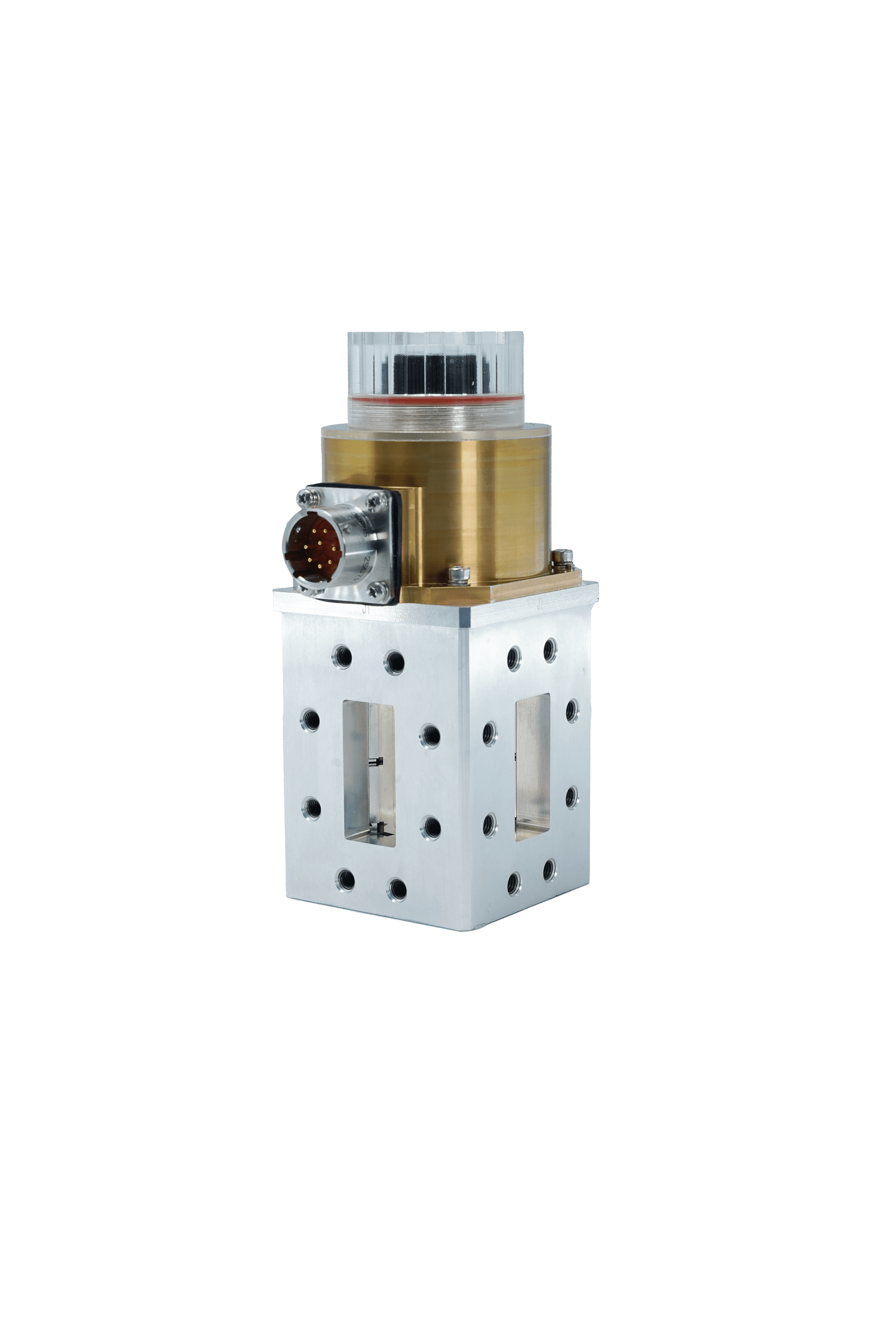

BJ70(WR137) Waveguide C-Type Switch
X-band waveguide C-type self-latching switch covering 5.8–6.8 GHz with ≤0.05 dB insertion loss, ≥70 dB isolation, and ≤1.1 VSWR. BJ70(WR137) interface, 0.75 kg, 28 V drive. Part No. J-600G30B20.

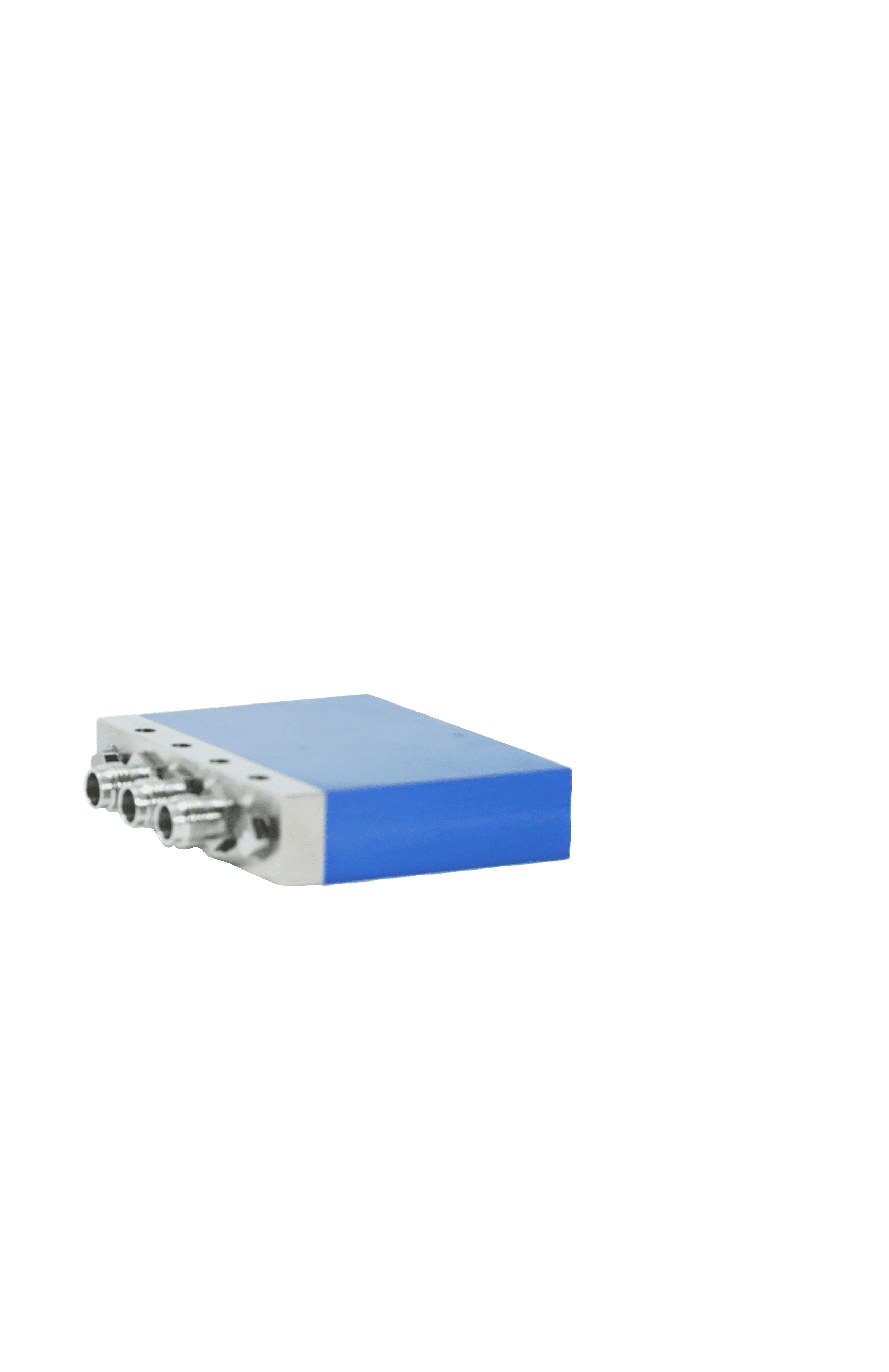

SPDT Loaded Coaxial Switch (DC–50 GHz)
Broadband SPDT loaded coaxial switch covering DC–50 GHz with ≤0.7 dB insertion loss, ≥55 dB isolation, and ≤1.6 VSWR at 50 GHz. 2.4 mm Female interface, 0.45 kg, 24 V. Part No. J-000420420.
SP6T Loaded Coaxial Switch (DC–67 GHz)
Broadband SP6T loaded coaxial switch covering DC–67 GHz with ≤1.2 dB insertion loss, ≥60 dB isolation, and ≤1.8 VSWR at 67 GHz. 1.85 mm Female interface, 0.5 kg, 28 V. Part No. J-838530420.

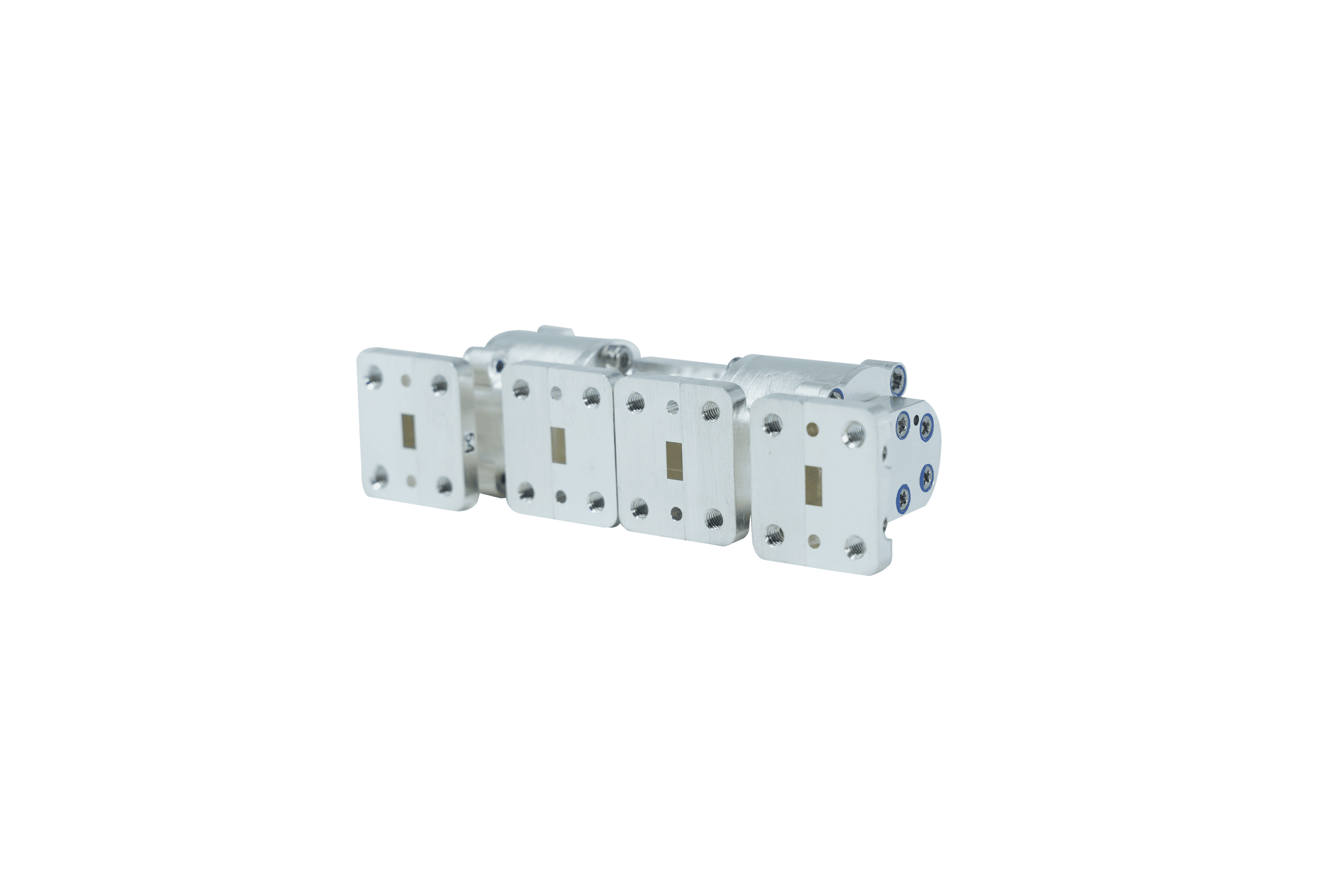

QVE Band Waveguide Rotary Joint
QVE-band dual-channel waveguide rotary joint covering 40–65 GHz with ≤0.3 dB insertion loss, ≤1.25 VSWR, and just 80 g weight. Custom flange interface for spaceborne antenna systems. Part No. JL2.966.0003.

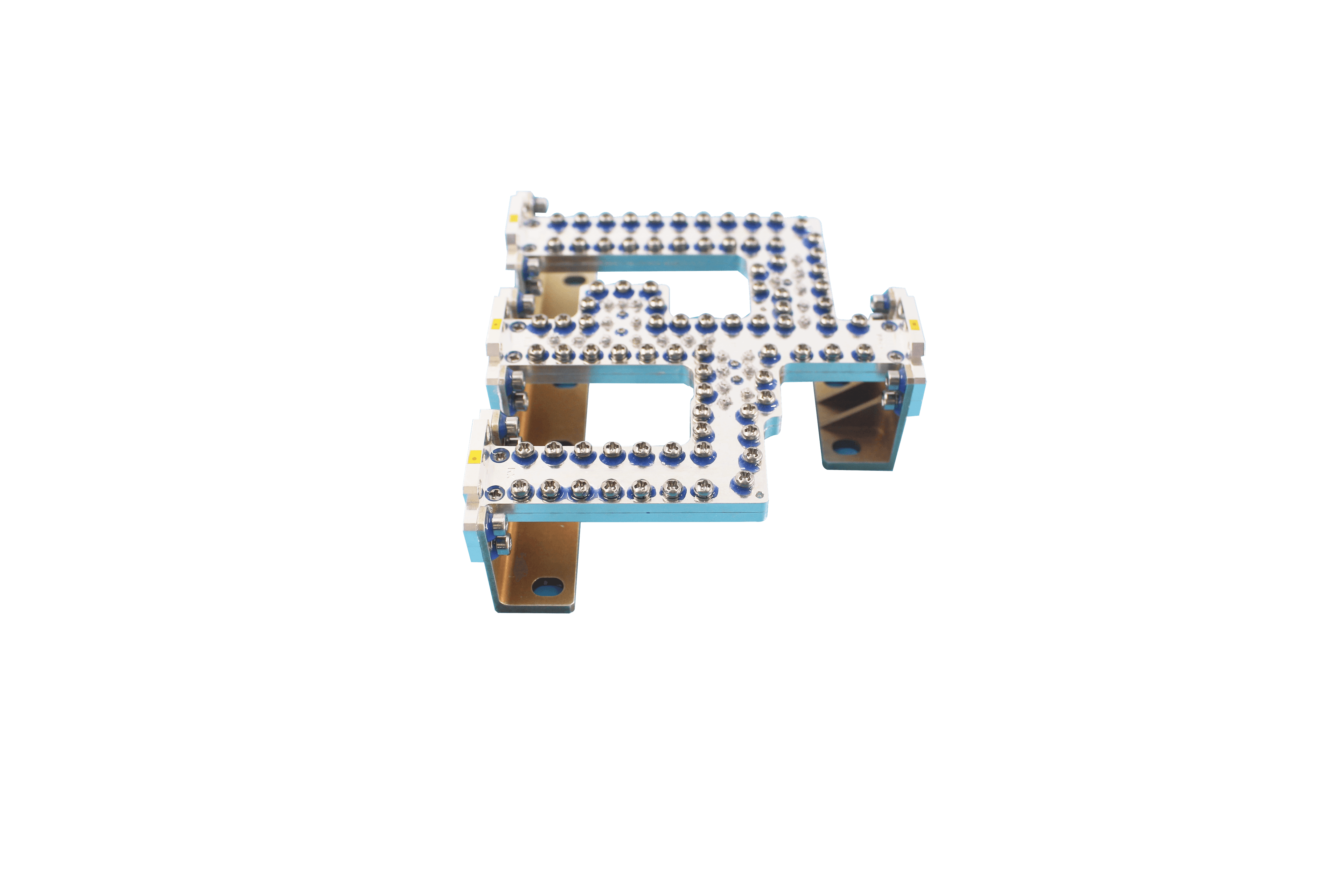

QV Band Waveguide Triplexer
Spaceborne QV-band waveguide triplexer with three channels near 38/40/47 GHz, ≤0.9 dB insertion loss, ≥60 dB isolation, ≤1.3 VSWR, 50 W power handling. 104×88×25.5 mm aluminum housing. Part No. JL2.965.0002.

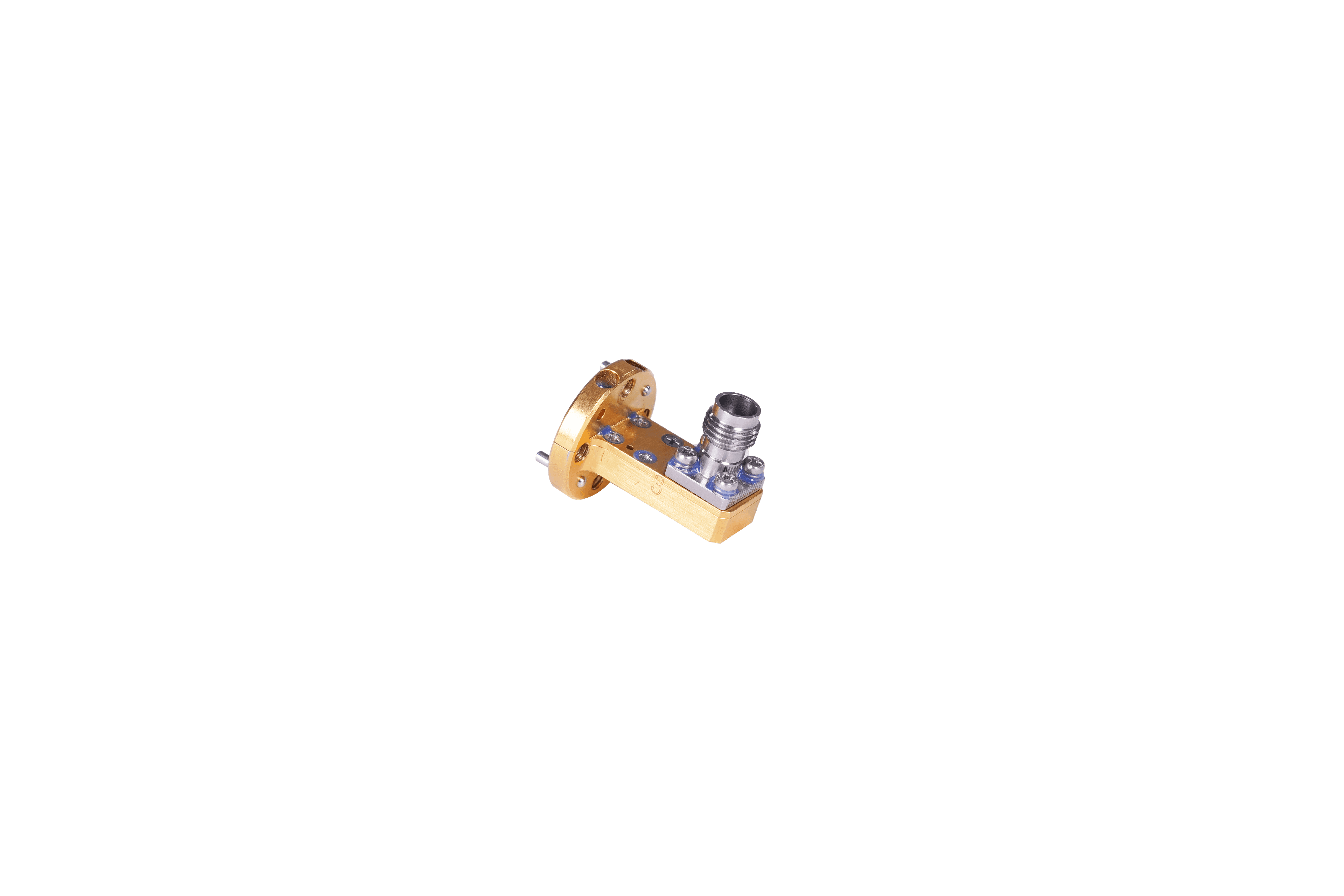

BJ620(WR15) Waveguide to Coax Adapter
V/W-band waveguide-to-coaxial adapter covering 49.8–65 GHz with ≤0.15 dB insertion loss and ≤1.2:1 VSWR. BJ620(WR15) waveguide and 1.85 mm Female interfaces. 15 g.
