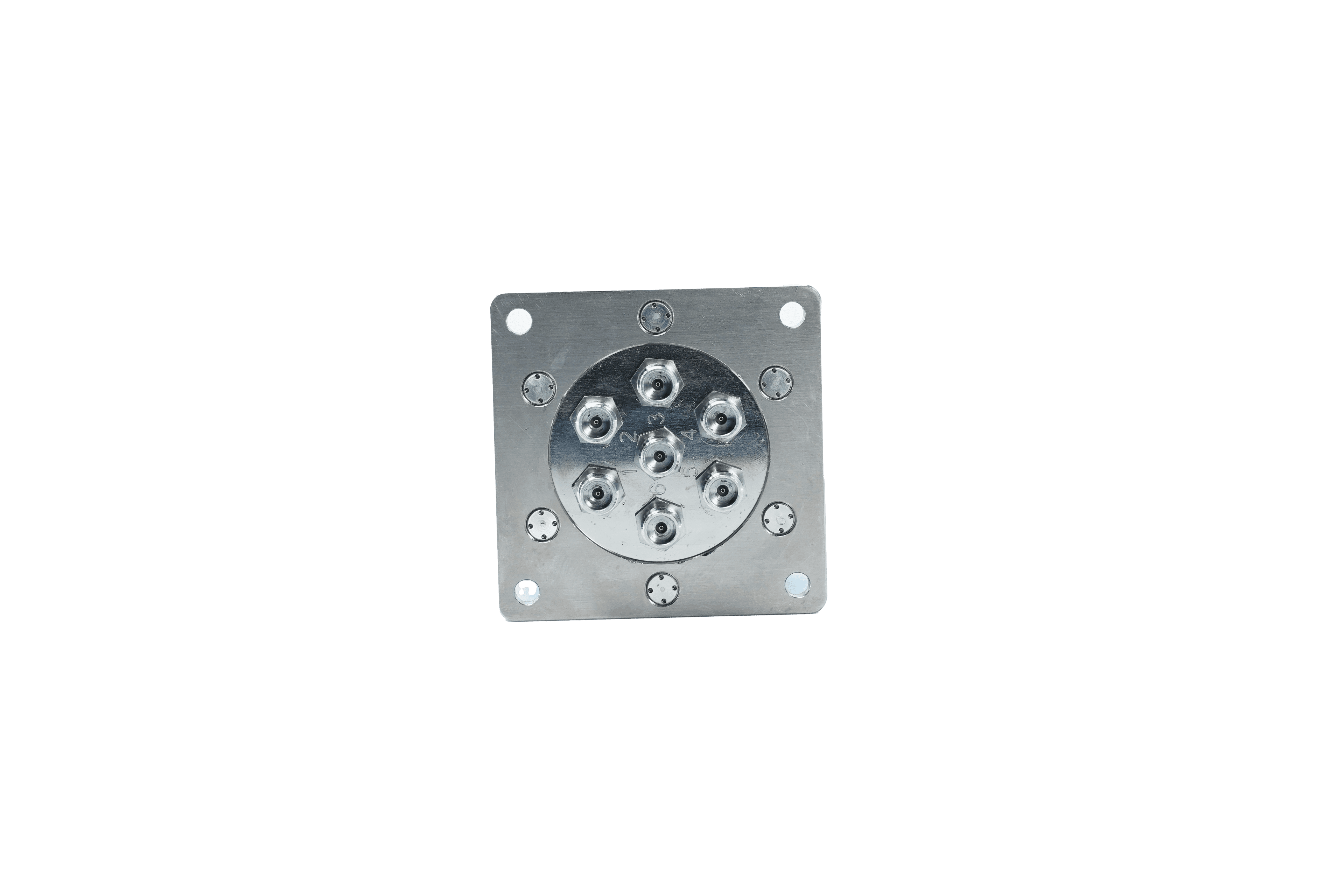

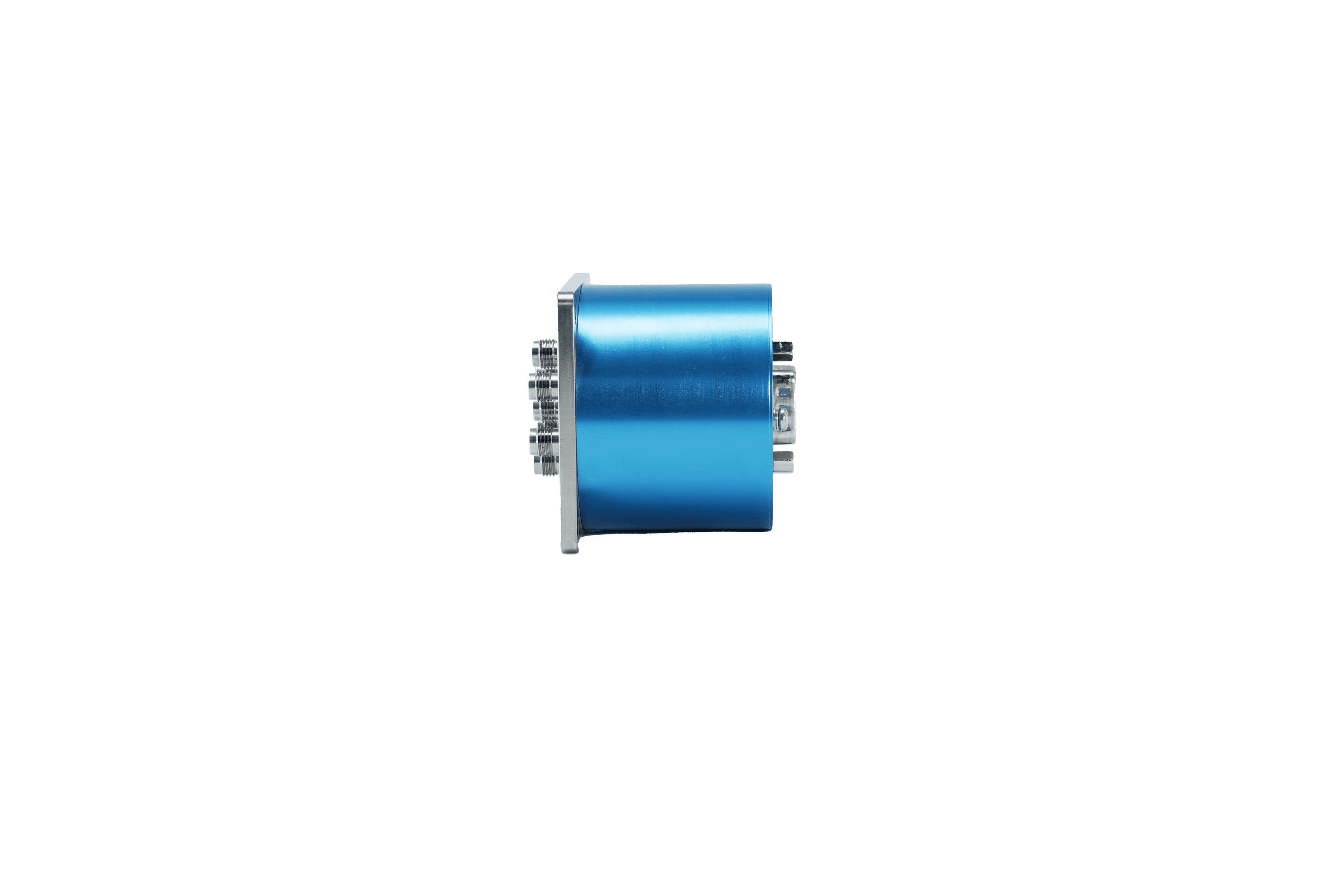

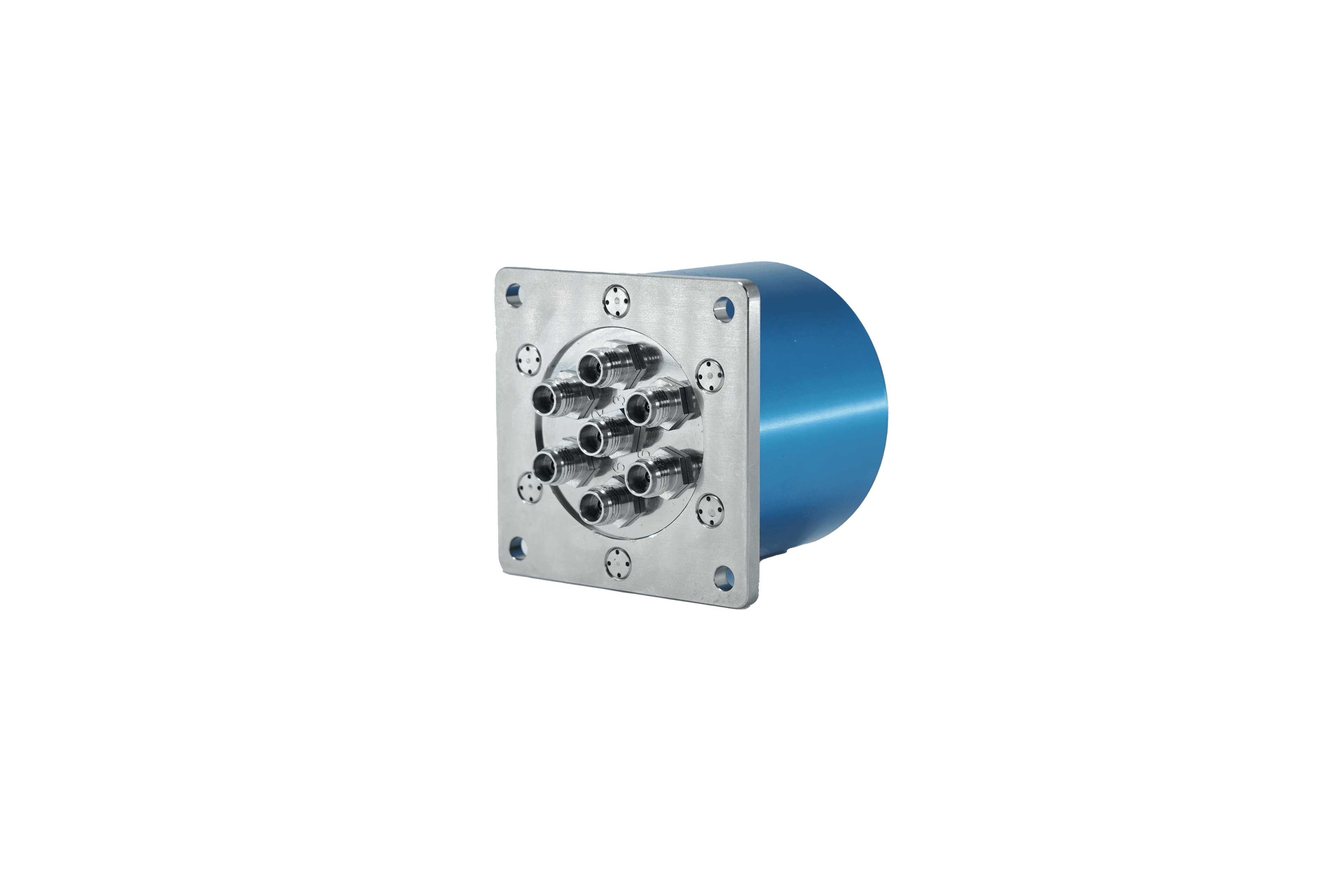

SP6T Loaded Coaxial Switch (DC–67 GHz)
SwitchesCoaxial
1 / 4
Overview
The SP6T Loaded Coaxial Switch (J-838530420) offers single-pole six-throw switching across DC to 67 GHz using a 1.85 mm Female coaxial interface. At 67 GHz, insertion loss is ≤1.2 dB, isolation ≥60 dB, and VSWR ≤1.8. Driven by a 28 V self-latching actuator and weighing 0.5 kg, this switch integrates termination loads on all inactive ports to ensure high isolation and minimal reflections across all switch states. It is well-suited for multi-channel automated test equipment, broadband EW systems, and mm-wave signal routing applications requiring 6-port switching up to 67 GHz.
Downloads
Admin ModeLoading files…
Product Technical Features
- Ultra-broadband: DC to 67 GHz
- 6-throw configuration for multi-channel routing
- Insertion loss: ≤ 1.2 dB @ 67 GHz
- Isolation: ≥ 60 dB @ 67 GHz
- VSWR: ≤ 1.8 @ 67 GHz
- Integrated load terminations on all inactive ports
- 1.85 mm Female coaxial interface
- Self-latching actuator: 28 V drive
Specifications
- Operating Frequency
- DC–67 GHz
- Insertion Loss
- ≤ 1.2 dB @ 67 GHz
- VSWR
- ≤ 1.8 @ 67 GHz
- Isolation
- ≥ 60 dB @ 67 GHz
- Configuration
- SP6T (1P6T)
- Drive Voltage
- 28 V (self-latching)
- RF Interface
- 1.85 mm Female
- Weight
- 0.5 kg
- Part Number
- J-838530420
