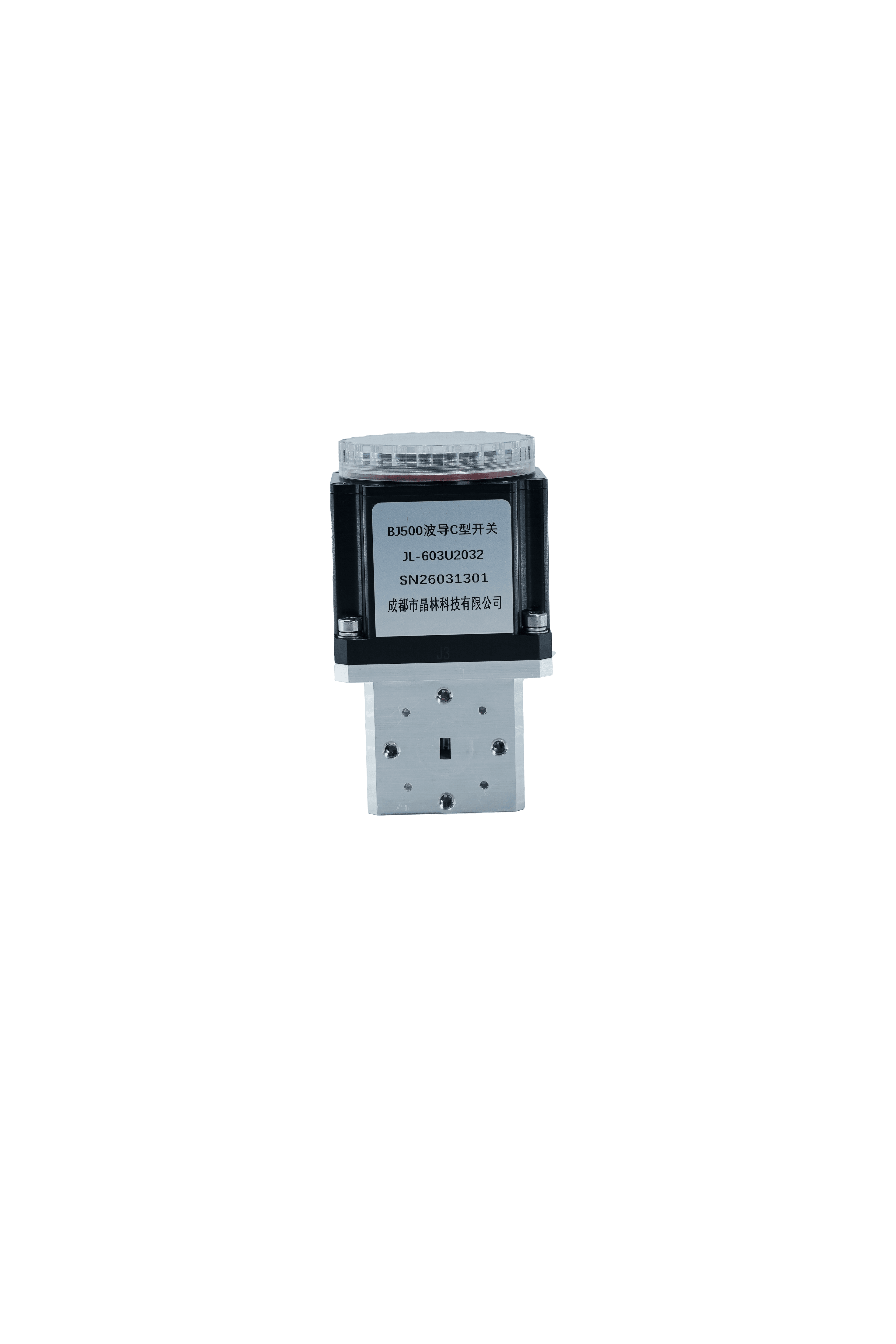

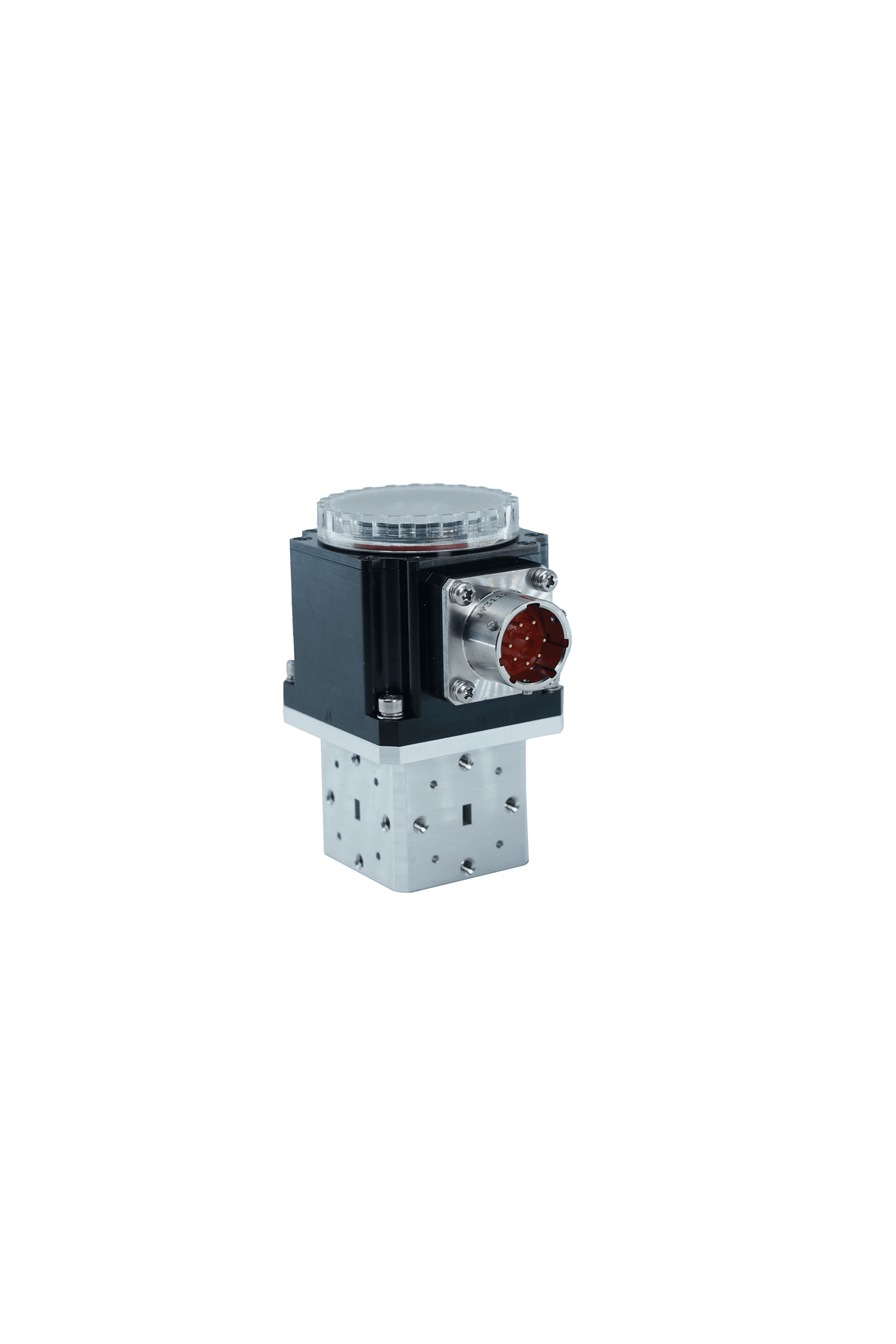

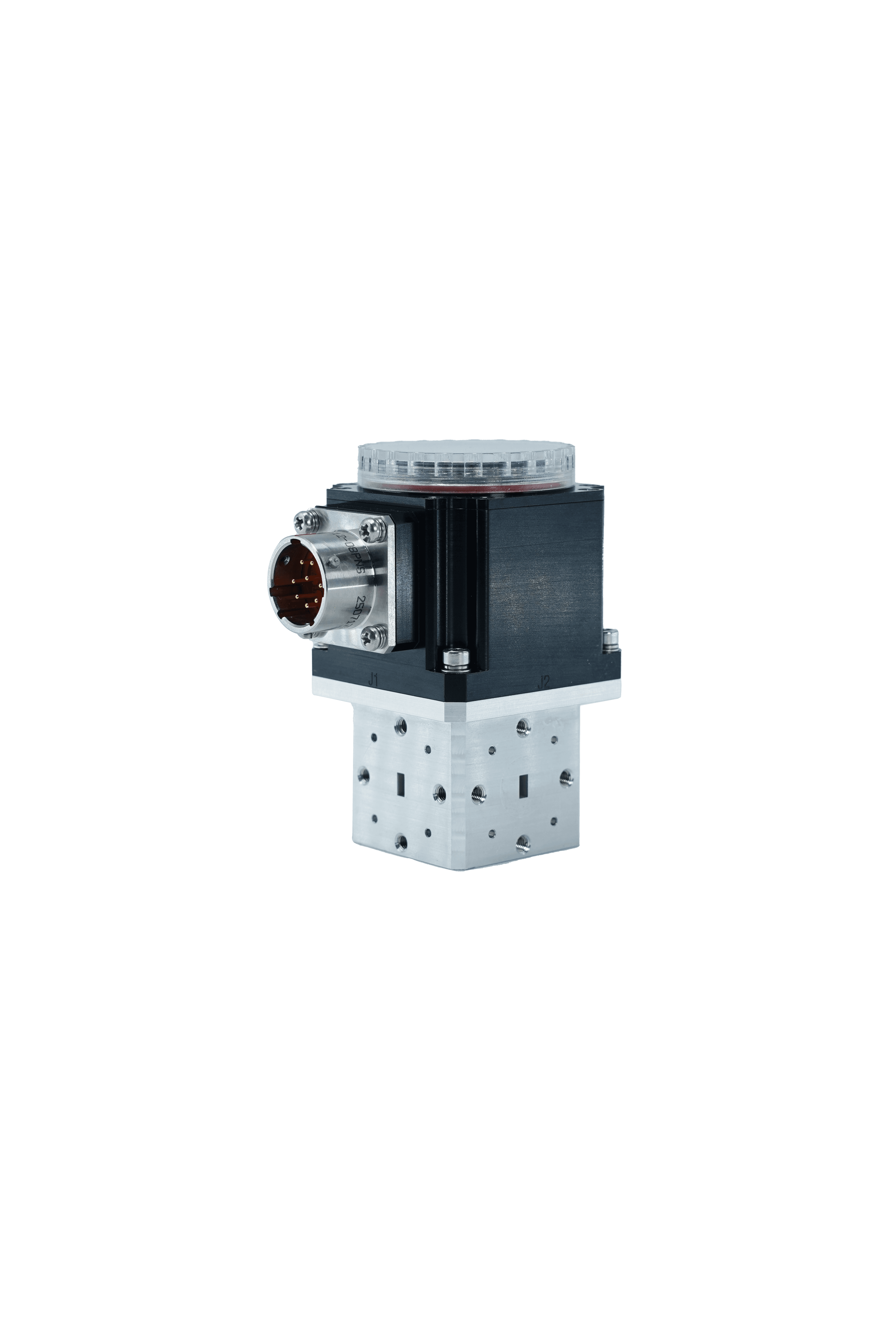

BJ500(WR19) Waveguide C-Type Switch

SwitchesV-band
product1
product2
product3
product4
1 / 4

Overview

The BJ500(WR19) Waveguide C-Type Switch (J-600Q37B00) is a self-latching electromechanical waveguide switch operating across the V-band (39–59 GHz). It achieves insertion loss ≤0.2 dB, VSWR ≤1.2, and port-to-port isolation ≥80 dB. The switch is driven by a 28 V self-latching actuator and features BJ500 (WR19) standard waveguide interfaces. At 0.45 kg, it is compact and suitable for satellite payloads, defense radar, and automated test systems requiring high-frequency switching with high isolation.

Downloads

Admin Mode
Loading files…

Product Technical Features

  • V-band frequency range: 39–59 GHz
  • Low insertion loss: ≤ 0.2 dB
  • Low VSWR: ≤ 1.2
  • High isolation: ≥ 80 dB
  • Self-latching actuator: 28 V drive
  • BJ500 (WR19) standard waveguide interface
  • Compact and lightweight: 0.45 kg
  • Suitable for satellite, radar, and automated test systems

Specifications

Operating Frequency
39–59 GHz
Insertion Loss
≤ 0.2 dB
VSWR
≤ 1.2
Isolation
≥ 80 dB
Drive Voltage
28 V (self-latching)
RF Interface
BJ500 (WR19) Waveguide
Weight
0.45 kg
Part Number
J-600Q37B00
