SPDT Loaded Coaxial Switch (DC–50 GHz)

Overview

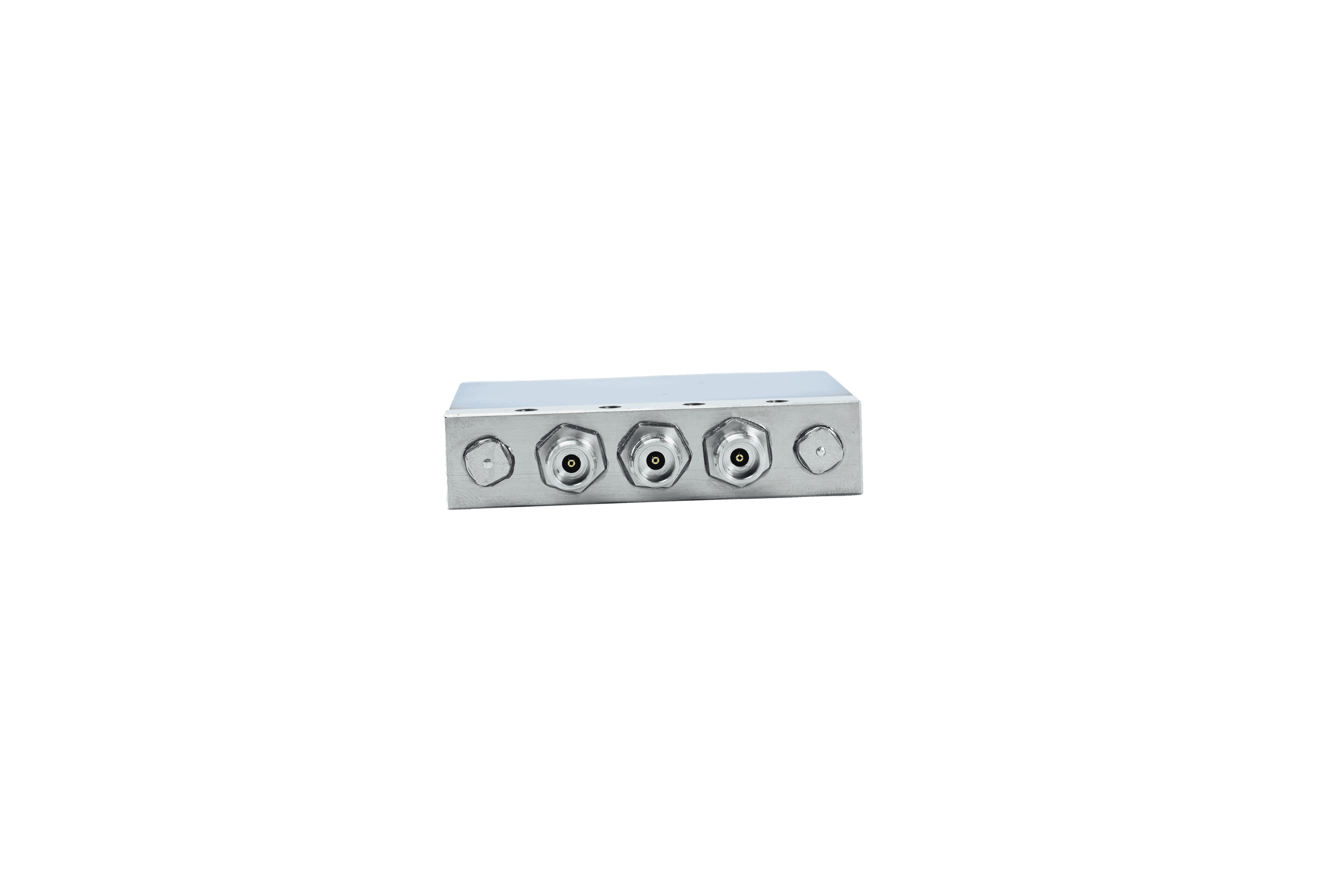

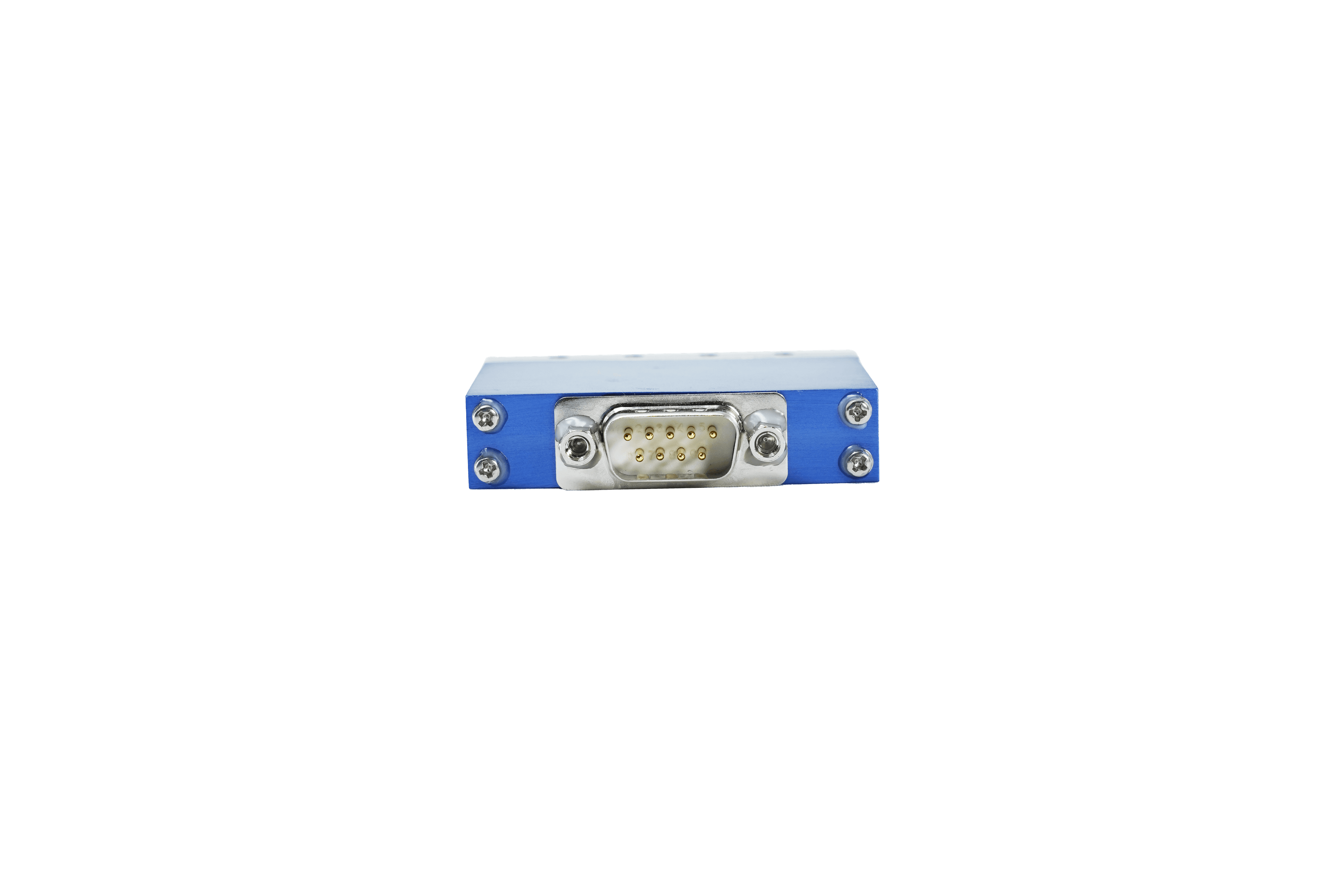

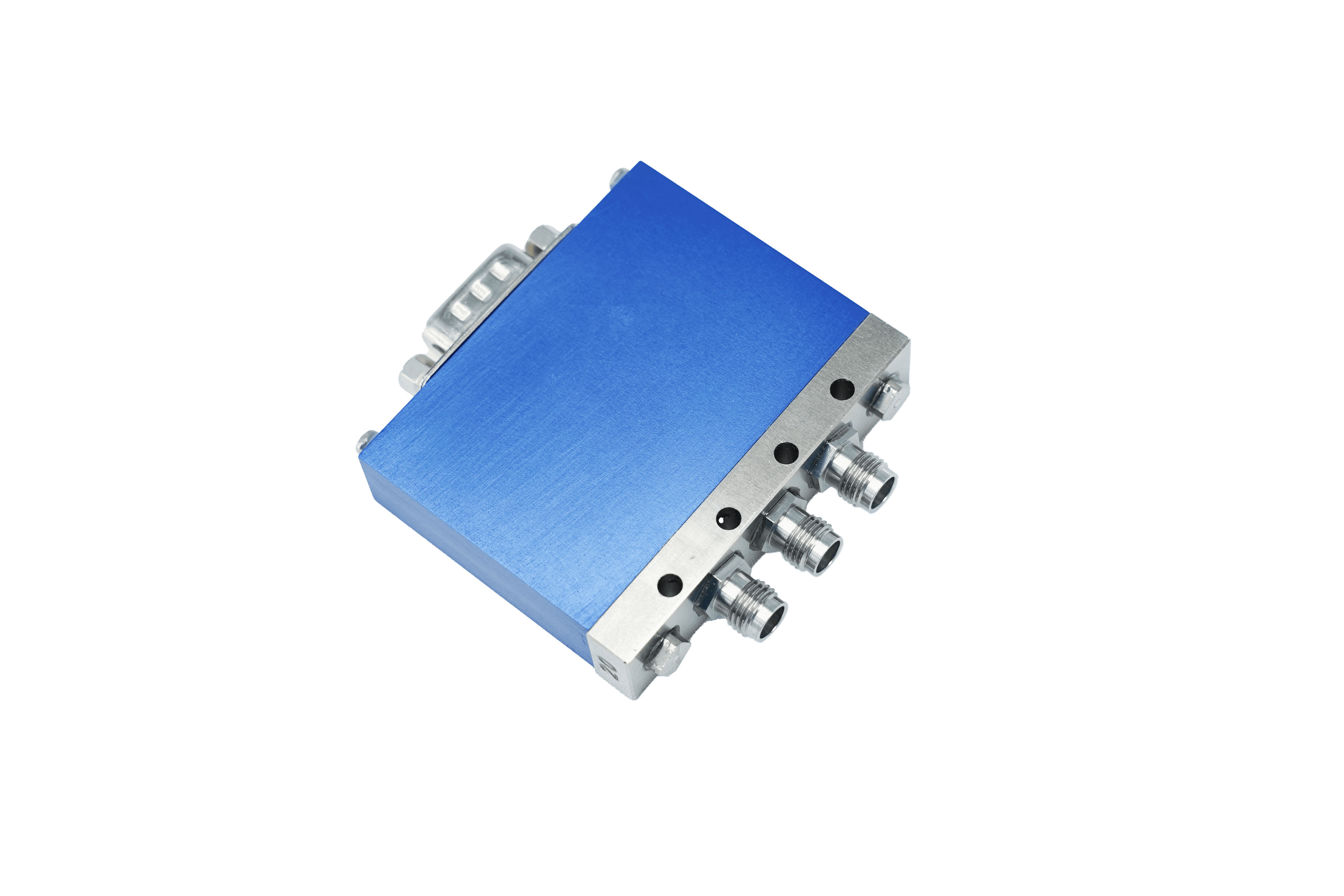

The SPDT Loaded Coaxial Switch (J-000420420) provides single-pole double-throw switching from DC to 50 GHz using a 2.4 mm Female coaxial interface. At 50 GHz, insertion loss is ≤0.7 dB, isolation ≥55 dB, and VSWR ≤1.6. The self-latching design is driven at 24 V and weighs 0.45 kg. Integrated termination loads on the inactive port minimize reflections and improve system isolation. It is ideal for broadband test systems, electronic warfare equipment, and satellite signal routing where frequency agility across the entire microwave and mm-wave range is required.
