BJ58(WR159) Waveguide C-Type Switch
SwitchesC/X-band
1 / 2
Overview

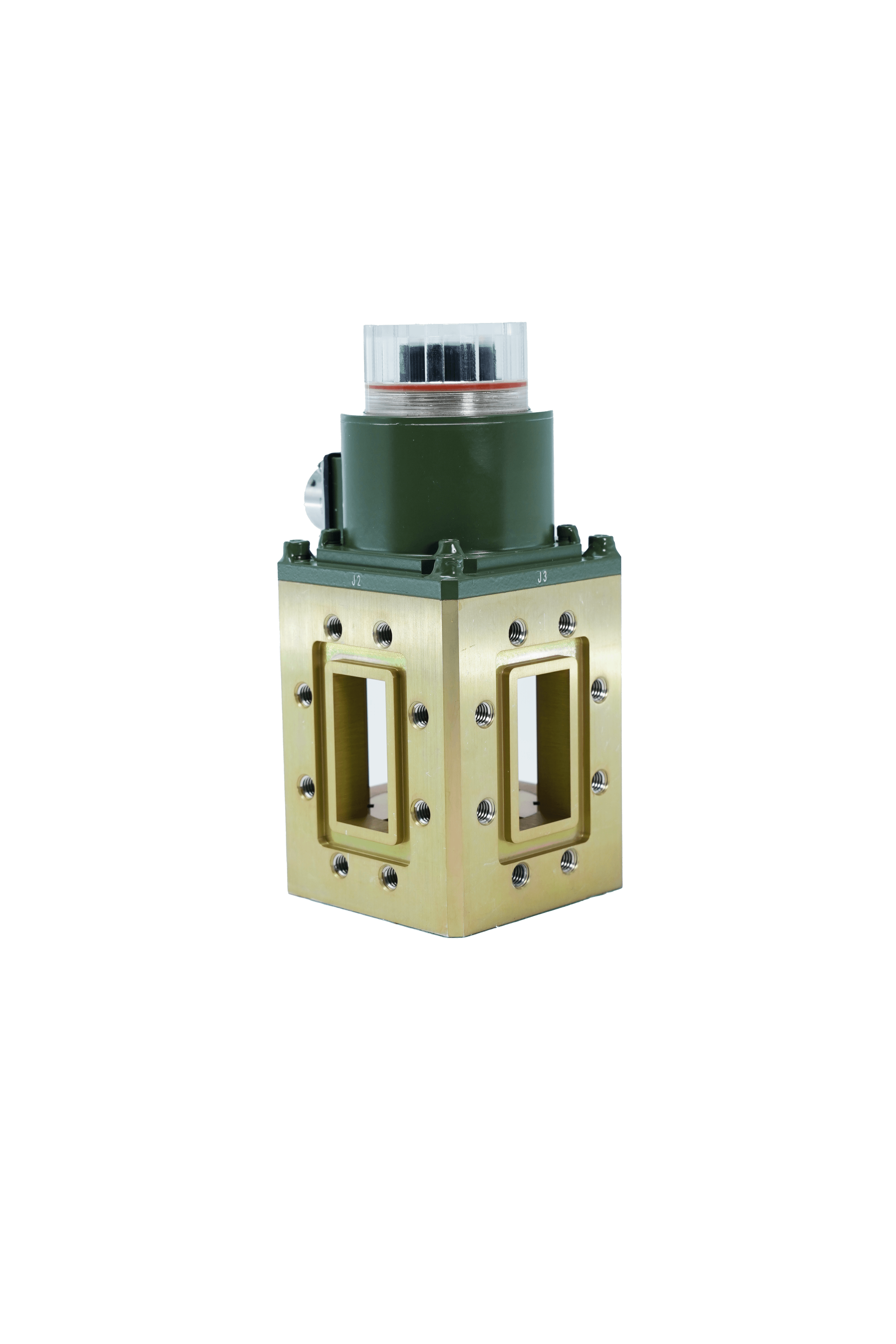

The BJ58(WR159) Waveguide C-Type Switch (J-610F20B20) is a self-latching electromechanical waveguide switch for the C/X-band (4.35–6.6 GHz). It provides extremely low insertion loss ≤0.05 dB, VSWR ≤1.1, and port isolation ≥85 dB — making it one of the highest-performance switches in its class. Driven by a 24 V self-latching actuator with BJ58 (WR159) standard waveguide interfaces, this 1.15 kg unit is suited for satellite ground stations, radar systems, and test equipment where signal fidelity is paramount.
Downloads
Admin ModeLoading files…
Product Technical Features
- C/X-band frequency range: 4.35–6.6 GHz
- Ultra-low insertion loss: ≤ 0.05 dB
- Very low VSWR: ≤ 1.1
- Very high isolation: ≥ 85 dB
- Self-latching actuator: 24 V drive
- BJ58 (WR159) standard waveguide interface
- Weight: 1.15 kg
- Ideal for satellite ground stations and radar systems
Specifications
- Operating Frequency
- 4.35–6.6 GHz
- Insertion Loss
- ≤ 0.05 dB
- VSWR
- ≤ 1.1
- Isolation
- ≥ 85 dB
- Drive Voltage
- 24 V (self-latching)
- RF Interface
- BJ58 (WR159) Waveguide
- Weight
- 1.15 kg
- Part Number
- J-610F20B20
