X-band Cavity Filter
Filters & MultiplexersX-band
Overview

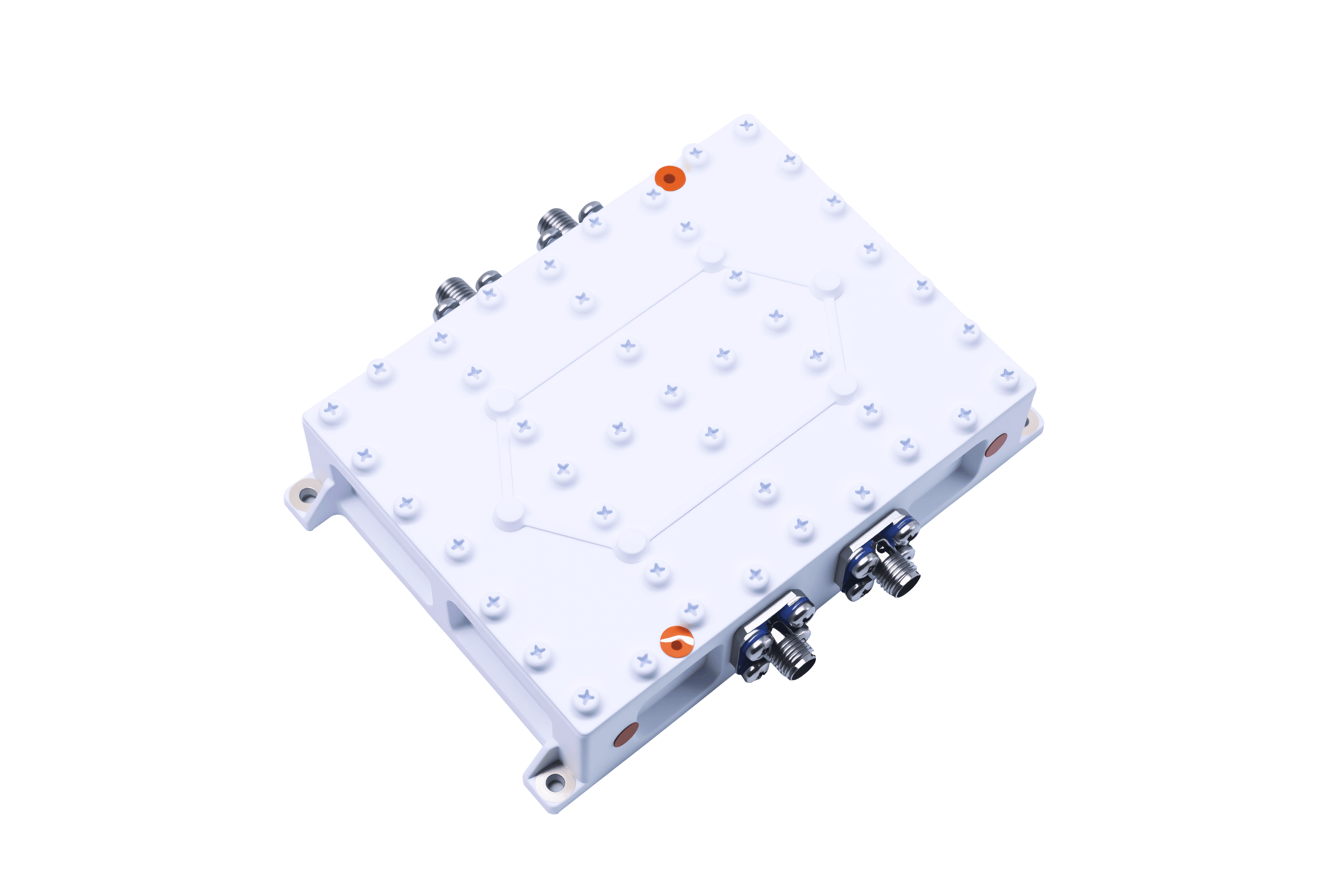

The X-band Cavity Filter (XH2.832.0007) uses a cavity filter structure with a 40 MHz bandwidth centered at 8.43 GHz. Insertion loss is less than 0.5 dB, and out-of-band rejection exceeds 100 dB at 7.145–7.190 GHz, making it ideal for signal processing and out-of-band interference suppression. Its low-pressure power handling exceeds 4 W (36 dBm), and the product operates over a temperature range of −35 °C to +70 °C. The compact aluminum alloy body (104 × 88 × 25.5 mm) with a white paint surface finish integrates an SMA Female coaxial RF interface.
Downloads
Admin ModeLoading files…
Product Technical Features
- Center frequency: 8.43 GHz
- Bandwidth: ±20 MHz (40 MHz total)
- Low insertion loss: ≤ 0.5 dB
- High out-of-band rejection: ≥ 100 dB @ 7.145–7.190 GHz
- Low VSWR: ≤ 1.3:1
- Input power handling: 36 dBm (4 W)
- Operating temperature: −35 °C to +70 °C
- Compact aluminum alloy housing: 104 × 88 × 25.5 mm
- SMA Female RF interface
Specifications
- Center Frequency
- 8.43 GHz
- Bandwidth
- ±20 MHz
- Insertion Loss
- ≤ 0.5 dB
- Out-of-Band Rejection
- ≥ 100 dB @ 7.145–7.190 GHz
- VSWR
- ≤ 1.3:1
- Input Power
- 36 dBm
- Operating Temperature
- −35 °C to +70 °C
- Material
- Aluminum Alloy
- Surface Treatment
- White Paint
- Dimensions
- 104 × 88 × 25.5 mm
- RF Interface
- SMA Female
- Part Number
- XH2.832.0007
