QV Feed Antenna
Overview
The QV Feed Antenna (XH-ANT-QV-230317) is a high-performance spaceborne spot beam antenna system designed for QV-band satellite communication payloads. It integrates a reflector antenna, two-axis pointing mechanism, rotary joint, waveguide components, latching/release device, thermal control, and a VPX 6U servo controller into a compact system (≤550×500×400 mm retracted, ≤5.9 kg total). The antenna covers the downlink band 37.5–40.0 GHz and uplink band 47.2–49.2 GHz, delivering >40 dBi gain with RHCP downlink and LHCP uplink polarization. Auto-tracking range is ±55° on both X and Y axes with ≤0.15° pointing accuracy. TX/RX isolation is ≥25 dB and axial ratio ≤1.5 dB within 3 dB bandwidth. Radiation hardened to ~43 kRad(Si) TID with a design lifetime of 7 years and >500,000 pointing mechanism rotations. Power consumption is ≤20 W standby and ≤52 W working from a +42 V supply.
Downloads
Product Technical Features
- Downlink frequency: 37.5–40.0 GHz; Uplink frequency: 47.2–49.2 GHz
- High gain: >40 dBi
- Two-axis auto-tracking: ±55° on X-Axis and Y-Axis
- Pointing accuracy: ≤0.15°
- Polarization: RHCP (downlink) / LHCP (uplink)
- Axial ratio: ≤1.5 dB within 3 dB bandwidth
- VSWR: ≤2
- TX/RX isolation: ≥25 dB
- Sidelobe suppression: −15 dB @ downlink
- Power handling: 10 W mean / 200 W peak (vacuum, design assurance)
- Total weight: ≤5.9 kg (antenna 4.7 kg + controller 1.2 kg)
- Radiation hardened: ~43 kRad(Si) TID
- Design lifetime: 7 years; >500,000 mechanism rotations
- RF interface: BJ400 waveguide (downlink & uplink)

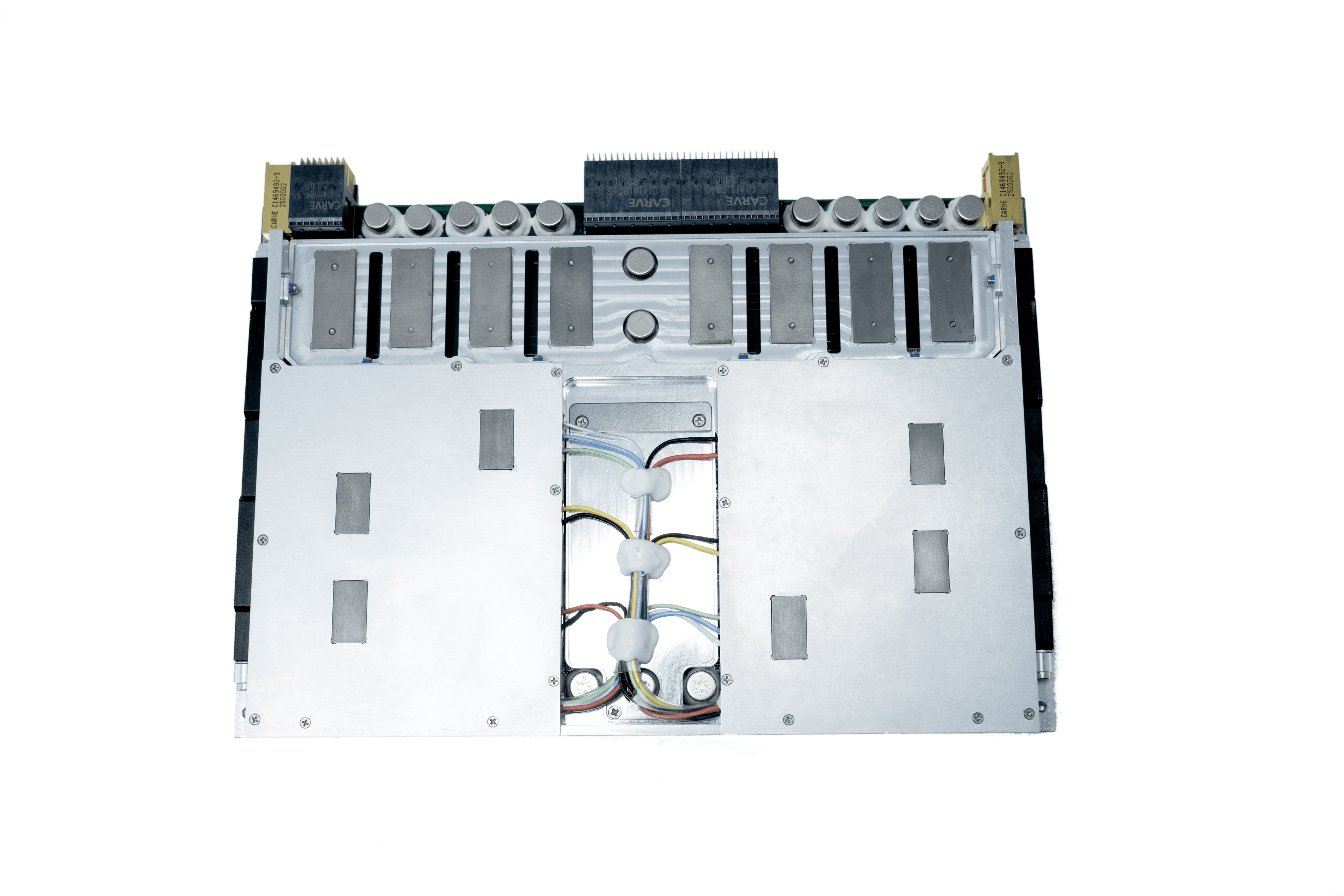

- VPX 6U servo controller with RS422 interface
Specifications
- Downlink Frequency
- 37.5–40.0 GHz
- Uplink Frequency
- 47.2–49.2 GHz
- Gain
- >40 dBi
- Tracking Range
- ±55° (X-Axis & Y-Axis)
- Pointing Accuracy
- ≤0.15°
- Polarization (DL/UL)
- RHCP / LHCP
- Axial Ratio
- ≤1.5 dB (within 3dB BW)
- VSWR
- ≤2
- TX/RX Isolation
- ≥25 dB
- Sidelobe Suppression
- −15 dB @ Downlink
- Power Handling
- 10 W mean / 200 W peak (vacuum)
- Total Weight
- ≤5.9 kg (antenna 4.7 kg + controller 1.2 kg)
- Envelope Size
- ≤550×500×400 mm (retracted)
- Supply Voltage
- +42 V (+37 V to +46.2 V)
- Power Consumption
- ≤20 W standby; ≤52 W working
- RF Interface
- BJ400 Waveguide (DL & UL)
- Controller
- VPX 6U
- Working Temperature (Antenna)
- −90°C ~ +90°C
- Working Temperature (Controller)
- −15°C ~ +45°C
- Radiation Hardness
- ~43 kRad(Si) TID
- Lifetime
- 7 years
- Mechanism Rotations
- >500,000 times
- Part Number
- XH-ANT-QV-230317
