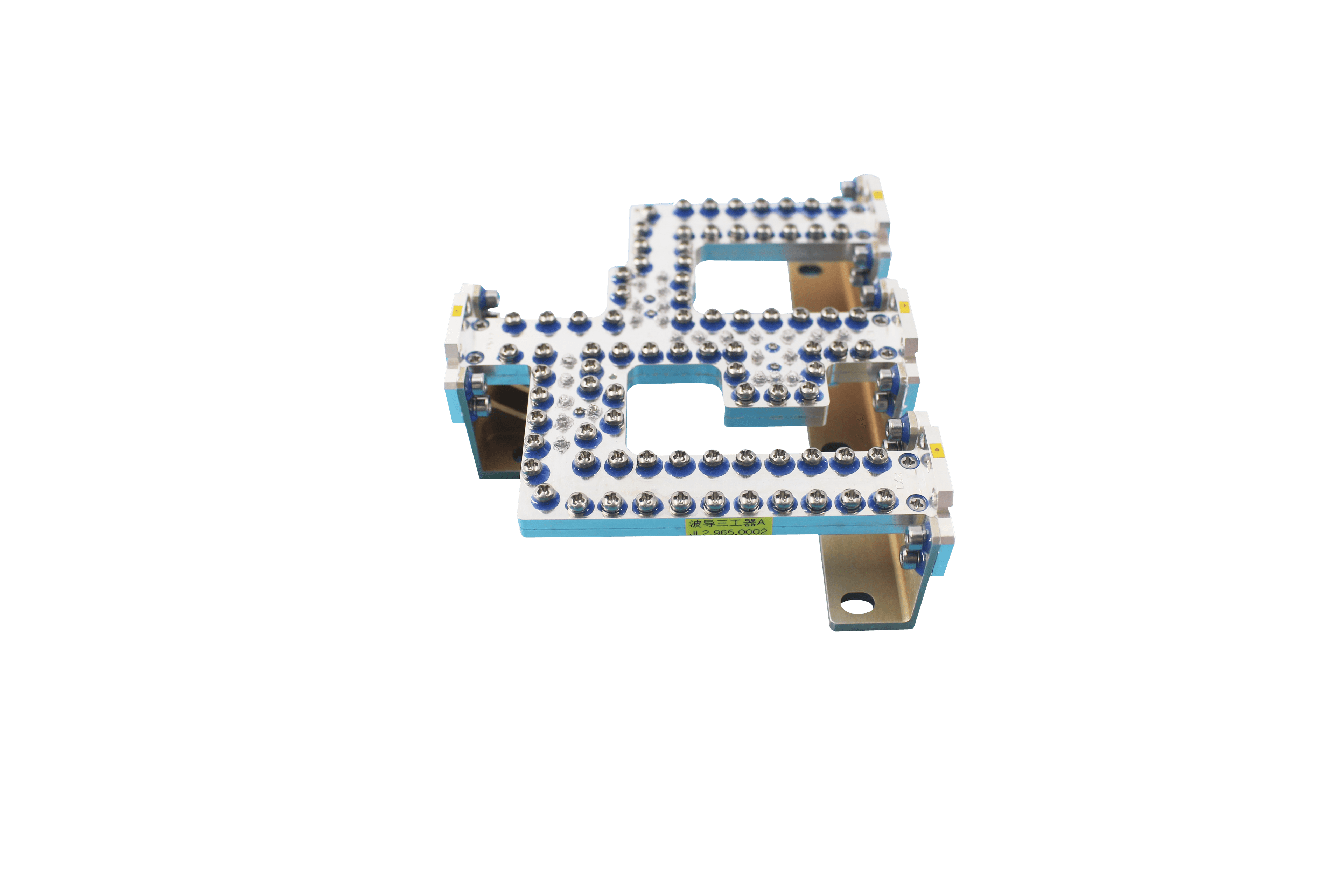

product2

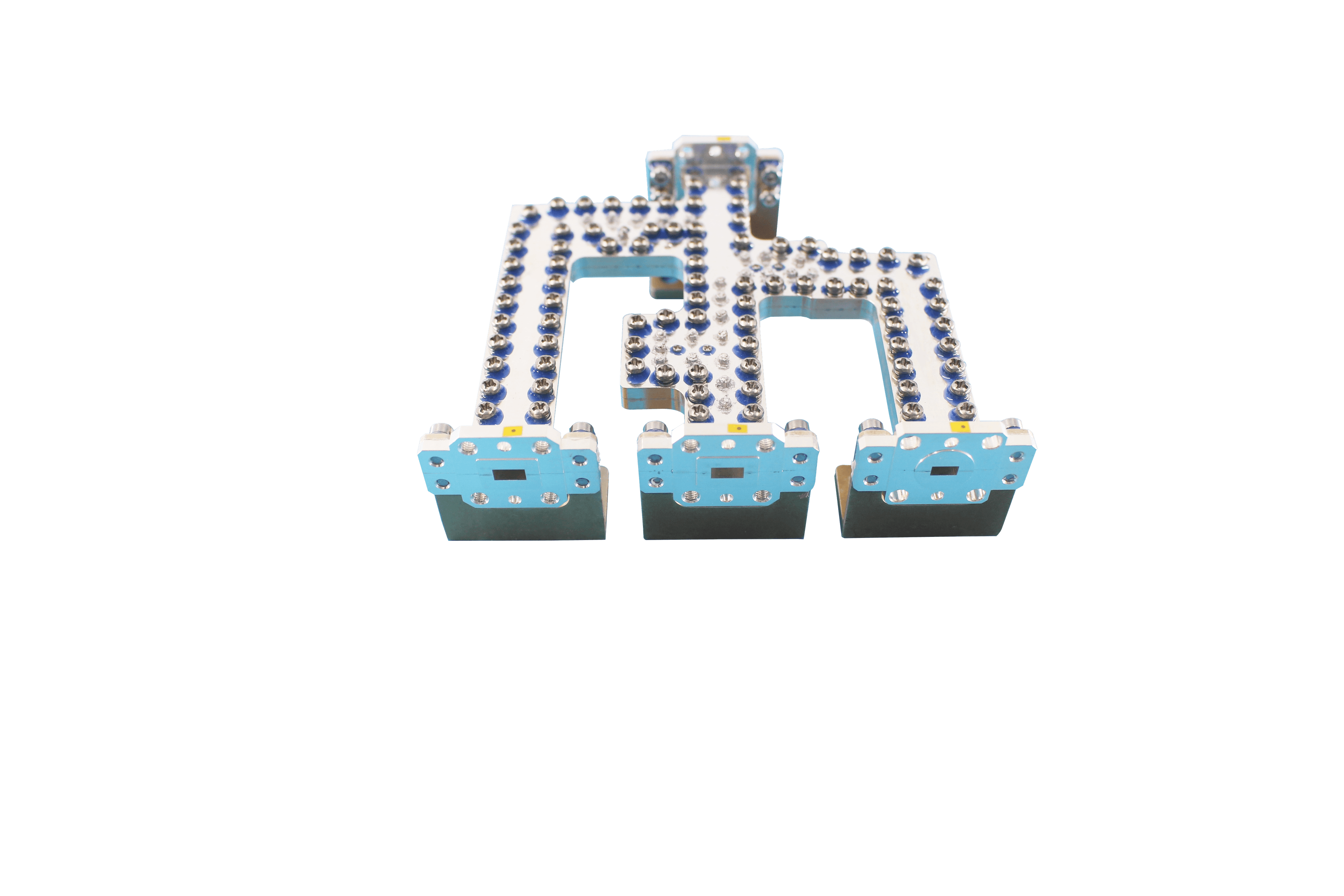

product3

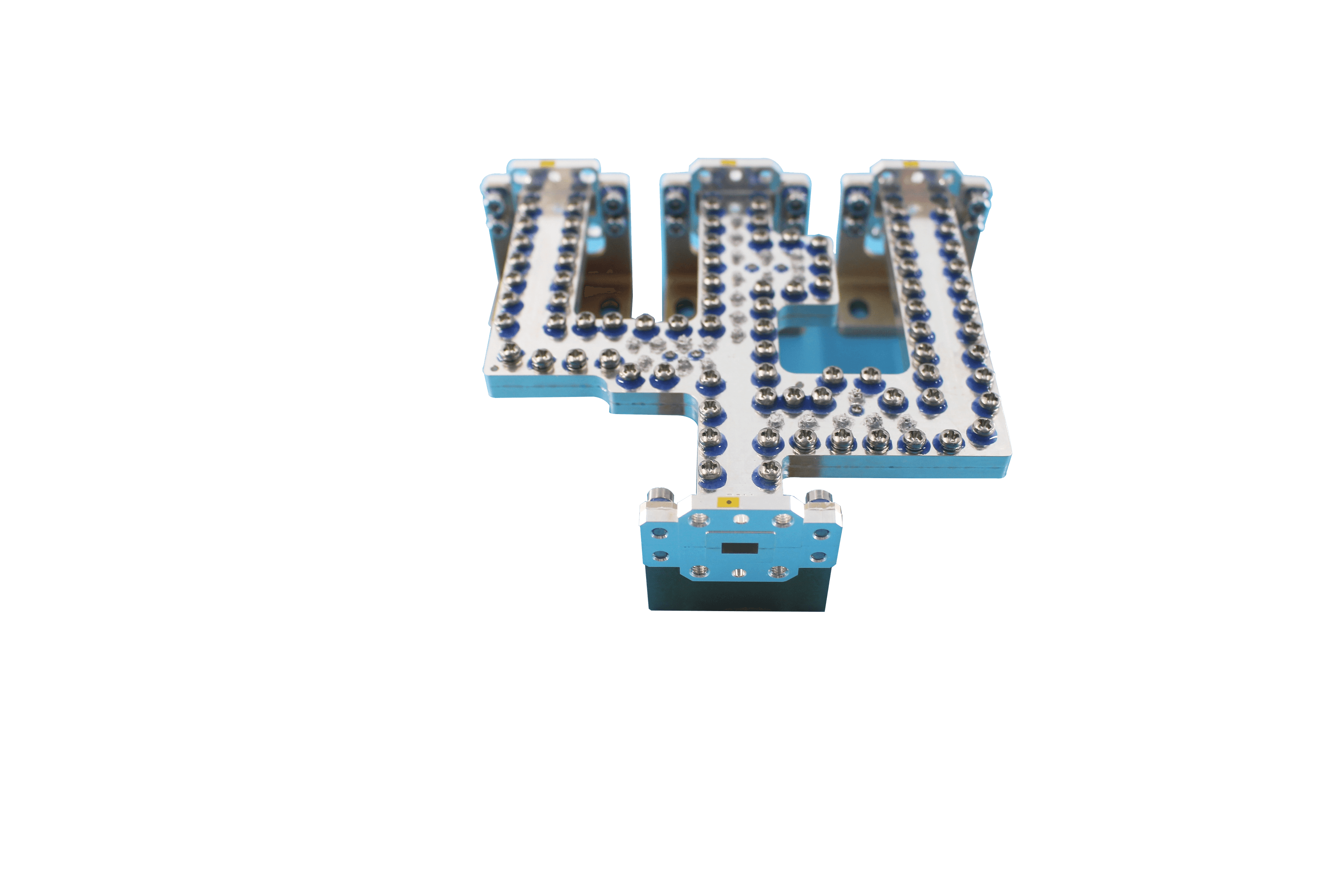

product4
1 / 4

Overview

The QV Band Waveguide Triplexer (JL2.965.0002) is a spaceborne high-performance passive device that multiplexes or demultiplexes three QV-band channels in a single compact unit. The three channels operate near 38 GHz, 40 GHz, and 47 GHz with insertion loss ≤0.9 dB, inter-channel isolation ≥60 dB, and VSWR ≤1.3. The device handles up to 50 W of input power and features BJ400 (WR22) waveguide interfaces with custom flanges. Its aluminum alloy housing (104 × 88 × 25.5 mm) uses Invar inserts for thermal stability. No tuning is required, and the product is qualified for the space environment including multipaction resistance.

Downloads

Admin Mode
Loading files…

Product Technical Features

  • QV-band three-channel multiplexer/demultiplexer
  • Channel frequencies: ~38 GHz, ~40 GHz, ~47 GHz
  • Low insertion loss: ≤ 0.9 dB per channel
  • High inter-channel isolation: ≥ 60 dB
  • Low VSWR: ≤ 1.3
  • High power handling: 50 W
  • BJ400 (WR22) waveguide interface with custom flange
  • No tuning required — space-qualified
  • Multipaction resistant design
  • Compact aluminum/Invar housing: 104 × 88 × 25.5 mm

Specifications

Channel Frequencies
~38 GHz, ~40 GHz, ~47 GHz
Insertion Loss
≤ 0.9 dB
Isolation
≥ 60 dB
VSWR
≤ 1.3
Power Handling
50 W
RF Interface
BJ400 (WR22) Waveguide
Material
Aluminum Alloy + Invar
Dimensions
104 × 88 × 25.5 mm
Part Number
JL2.965.0002
