BJ70(WR137) Waveguide C-Type Switch
SwitchesX-band
1 / 3
Overview

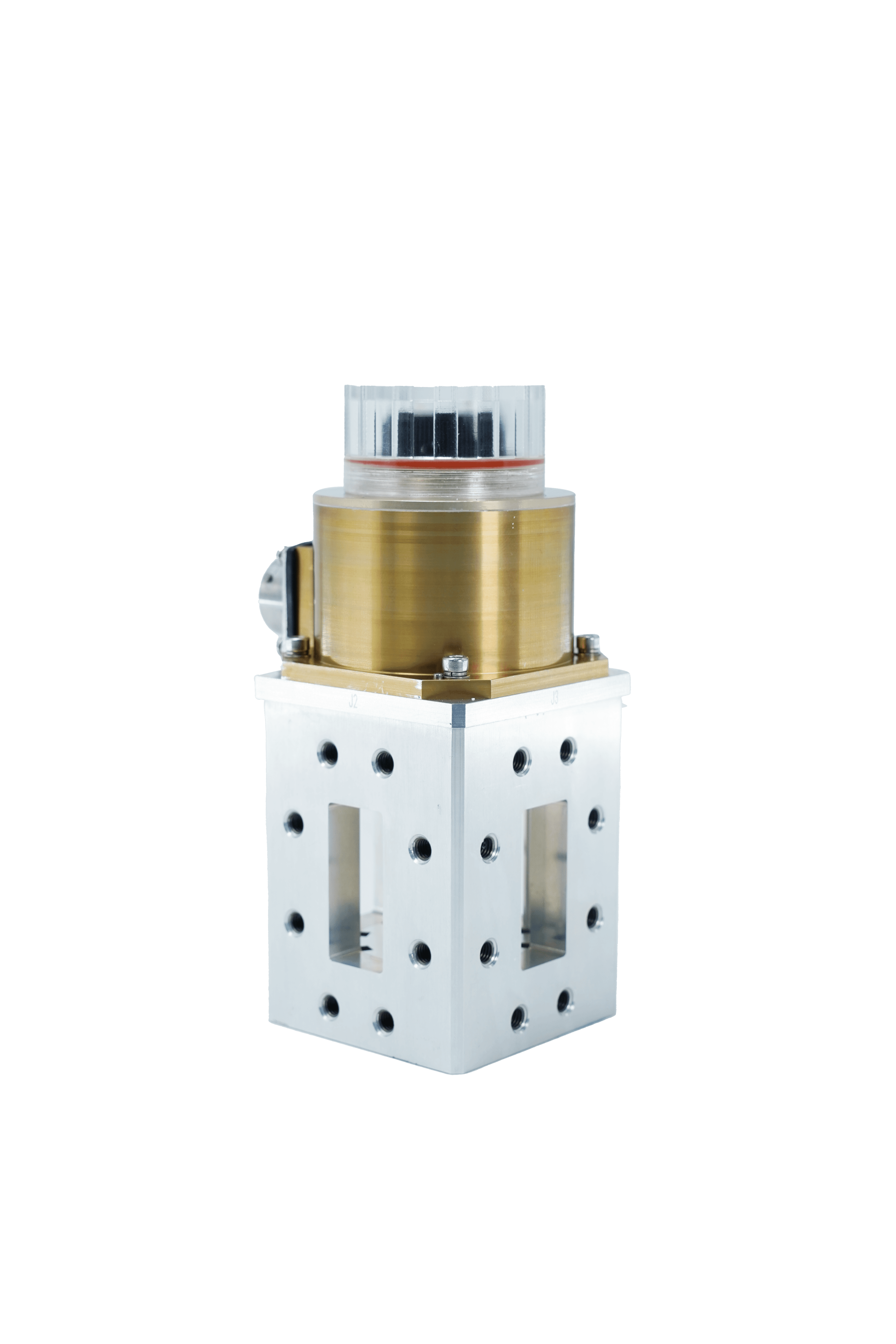

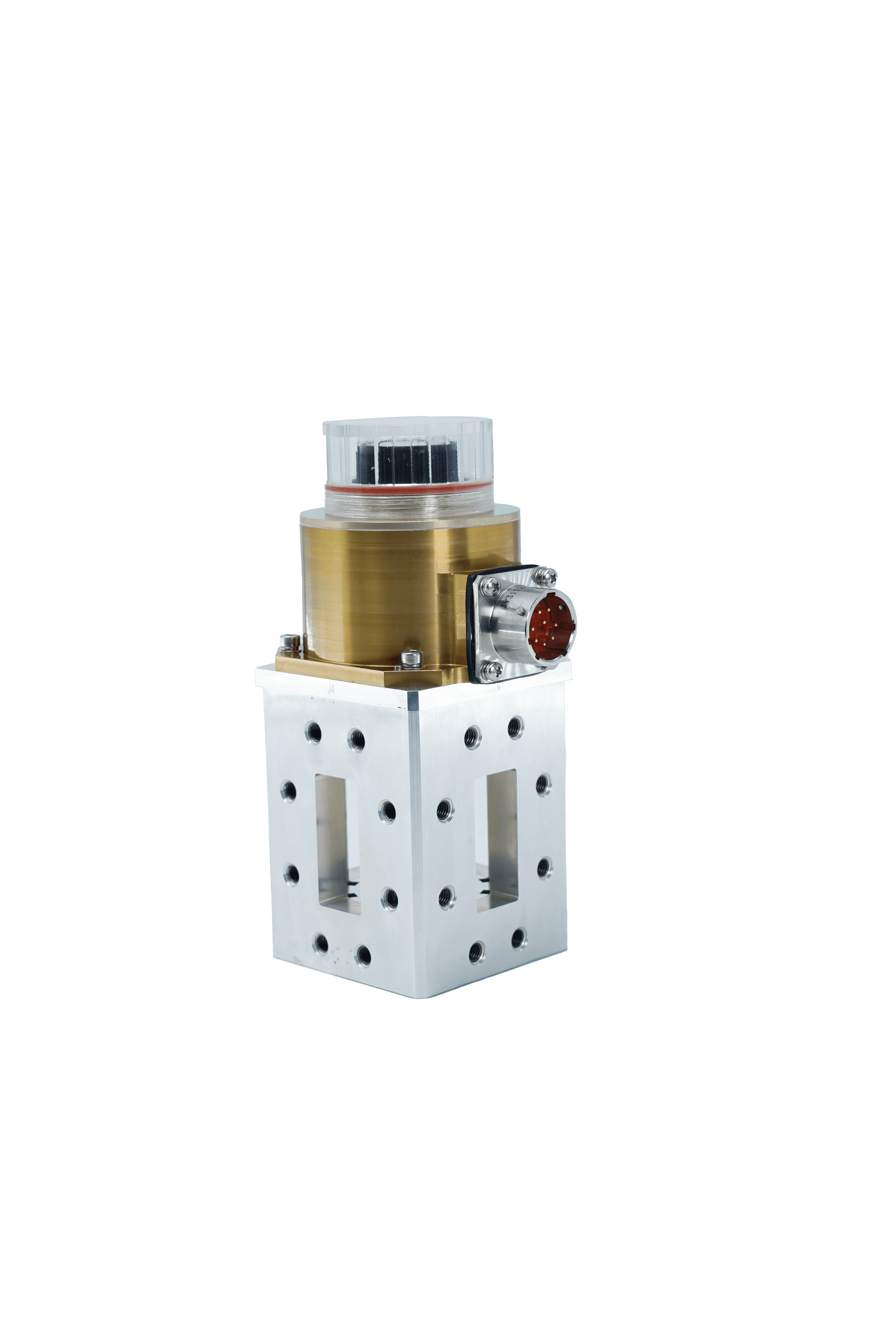

The BJ70(WR137) Waveguide C-Type Switch (J-600G30B20) is a self-latching electromechanical waveguide switch covering 5.8–6.8 GHz in the X-band. With insertion loss ≤0.05 dB, VSWR ≤1.1, and port isolation ≥70 dB, it delivers excellent signal integrity for communication and radar switching applications. The 28 V self-latching actuator and BJ70 (WR137) waveguide interface make it compatible with standard X-band systems. At 0.75 kg, it suits satellite payloads, ground stations, and defense equipment.
Downloads
Admin ModeLoading files…
Product Technical Features
- X-band frequency range: 5.8–6.8 GHz
- Ultra-low insertion loss: ≤ 0.05 dB
- Very low VSWR: ≤ 1.1
- High isolation: ≥ 70 dB
- Self-latching actuator: 28 V drive
- BJ70 (WR137) standard waveguide interface
- Weight: 0.75 kg
- Suitable for satellite payloads and defense systems
Specifications
- Operating Frequency
- 5.8–6.8 GHz
- Insertion Loss
- ≤ 0.05 dB
- VSWR
- ≤ 1.1
- Isolation
- ≥ 70 dB
- Drive Voltage
- 28 V (self-latching)
- RF Interface
- BJ70 (WR137) Waveguide
- Weight
- 0.75 kg
- Part Number
- J-600G30B20
