Products
Precision RF and microwave components engineered for satellite, radar, defense, and telecommunications applications.
5 products in Switches

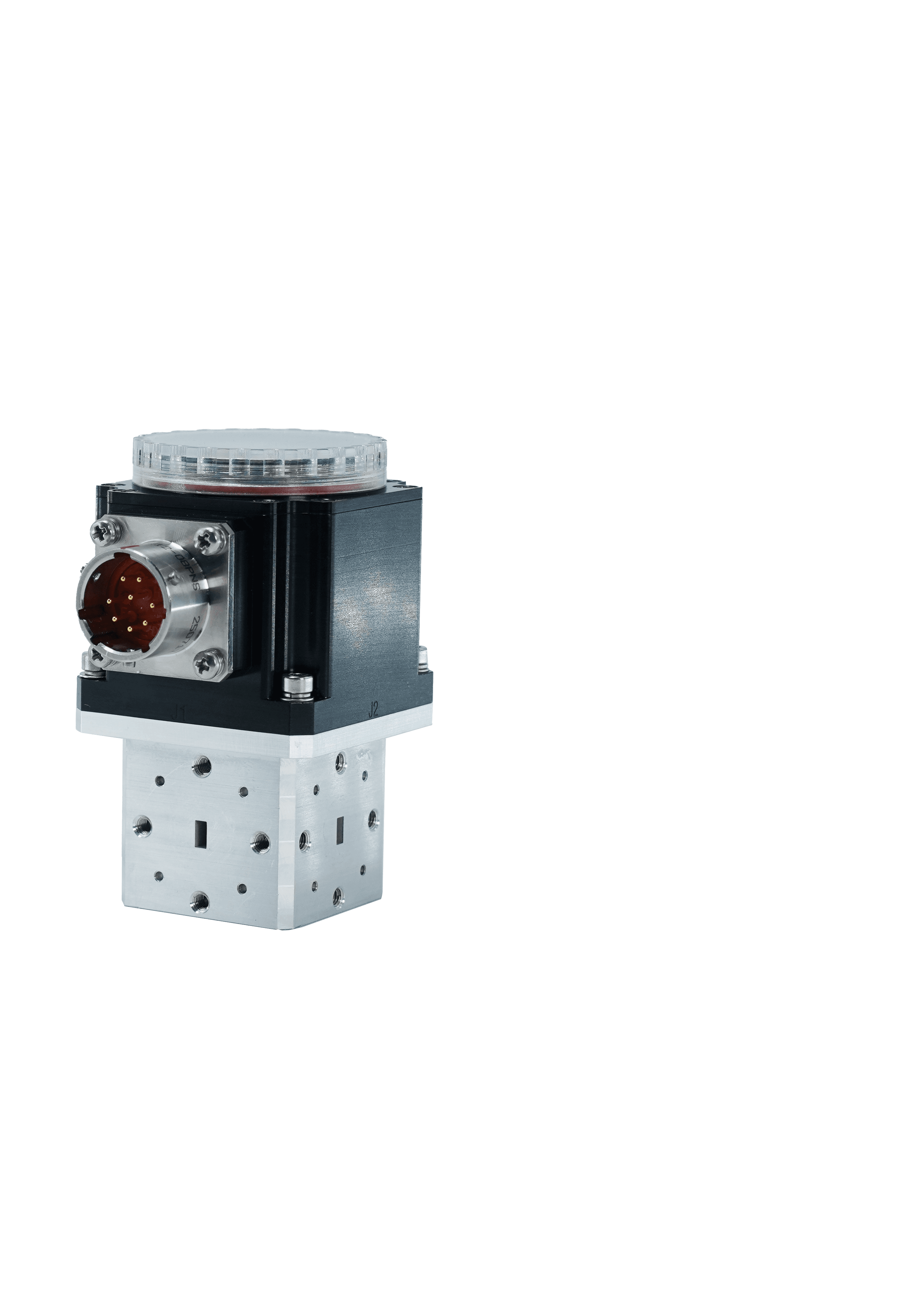

BJ500(WR19) Waveguide C-Type Switch
V-band waveguide C-type self-latching switch covering 39–59 GHz with ≤0.2 dB insertion loss, ≥80 dB isolation, and ≤1.2 VSWR. BJ500(WR19) interface, 0.45 kg, 28 V drive. Part No. J-600Q37B00.

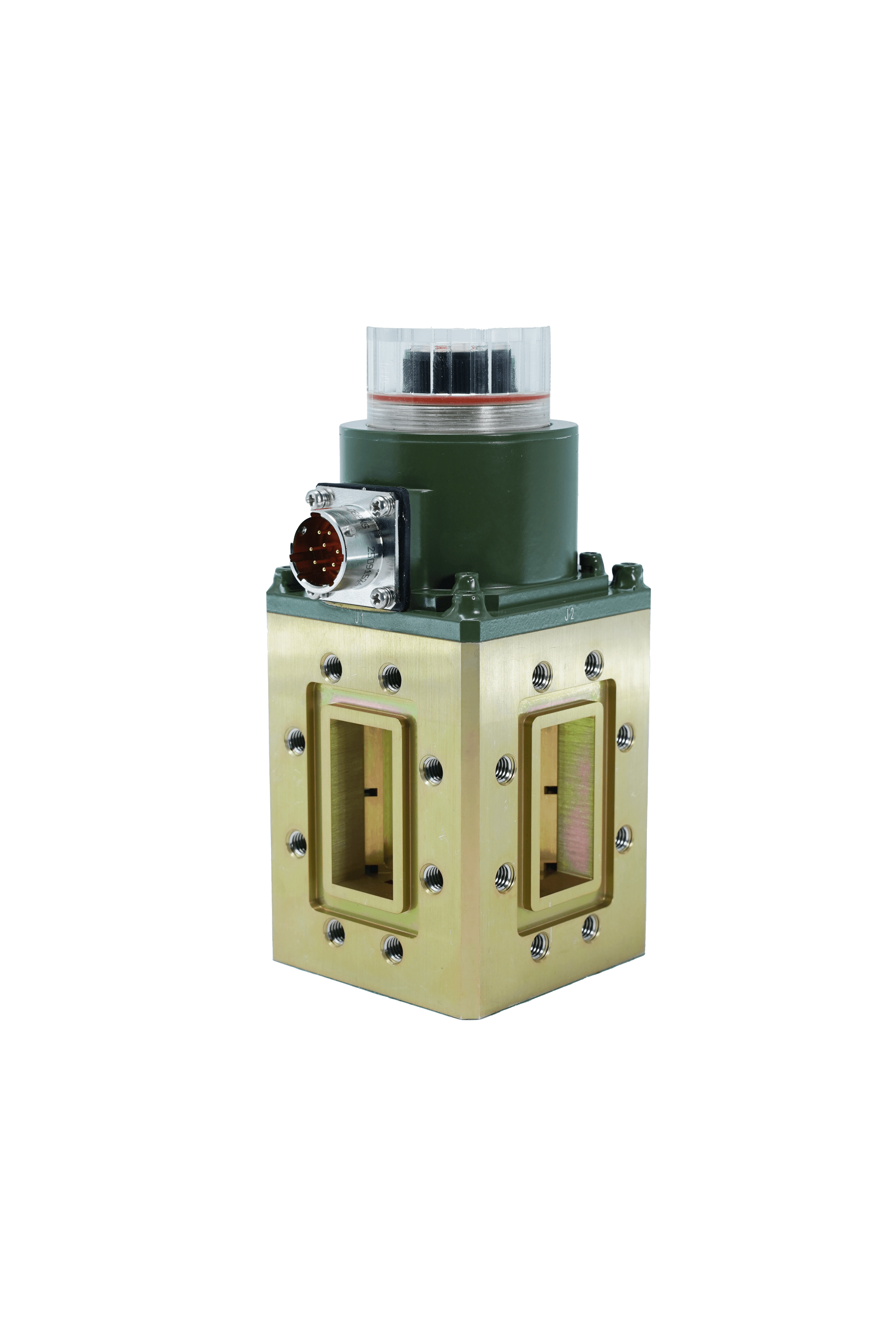

BJ58(WR159) Waveguide C-Type Switch
C/X-band waveguide C-type self-latching switch covering 4.35–6.6 GHz with ≤0.05 dB insertion loss, ≥85 dB isolation, and ≤1.1 VSWR. BJ58(WR159) interface, 1.15 kg, 24 V drive. Part No. J-610F20B20.

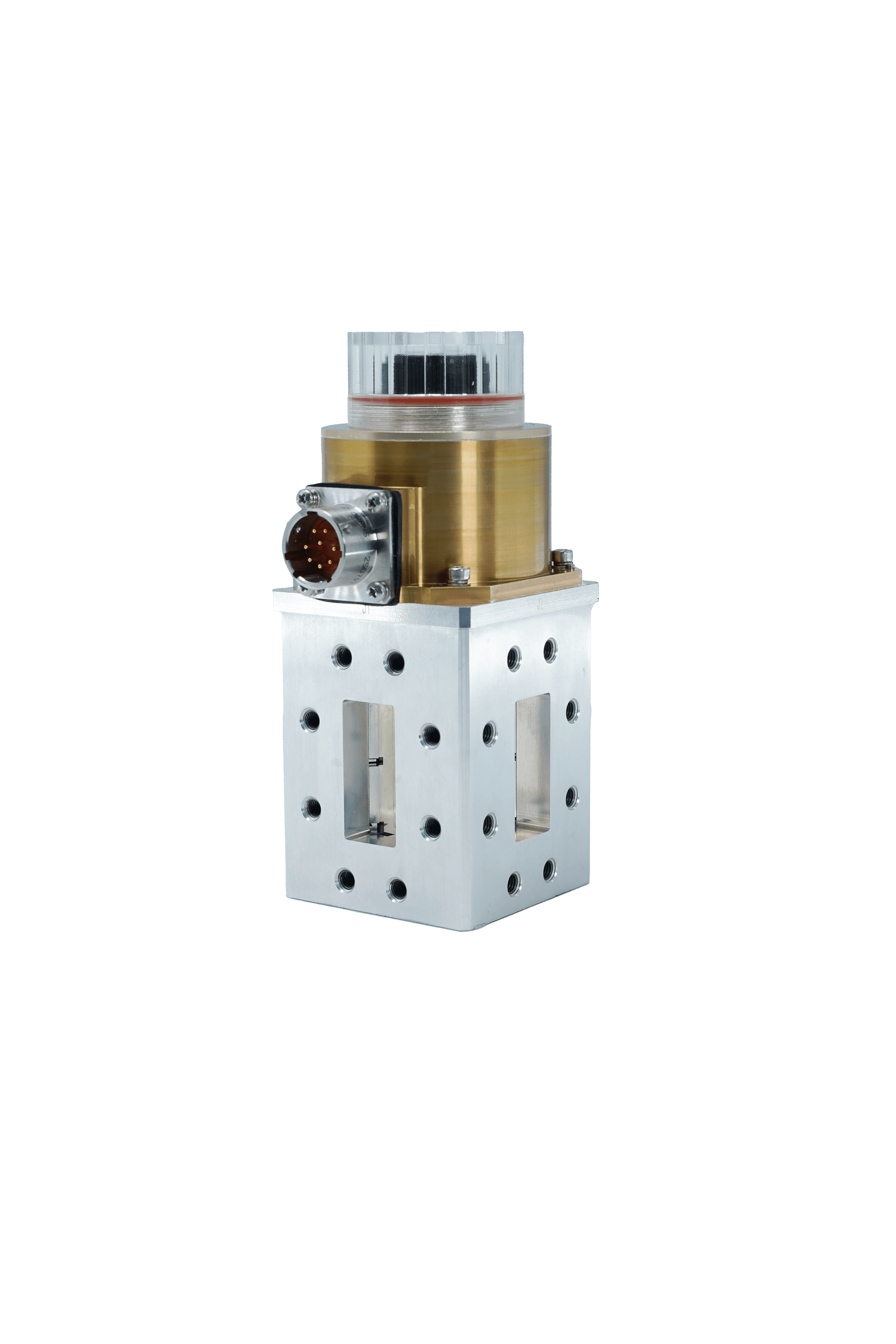

BJ70(WR137) Waveguide C-Type Switch
X-band waveguide C-type self-latching switch covering 5.8–6.8 GHz with ≤0.05 dB insertion loss, ≥70 dB isolation, and ≤1.1 VSWR. BJ70(WR137) interface, 0.75 kg, 28 V drive. Part No. J-600G30B20.

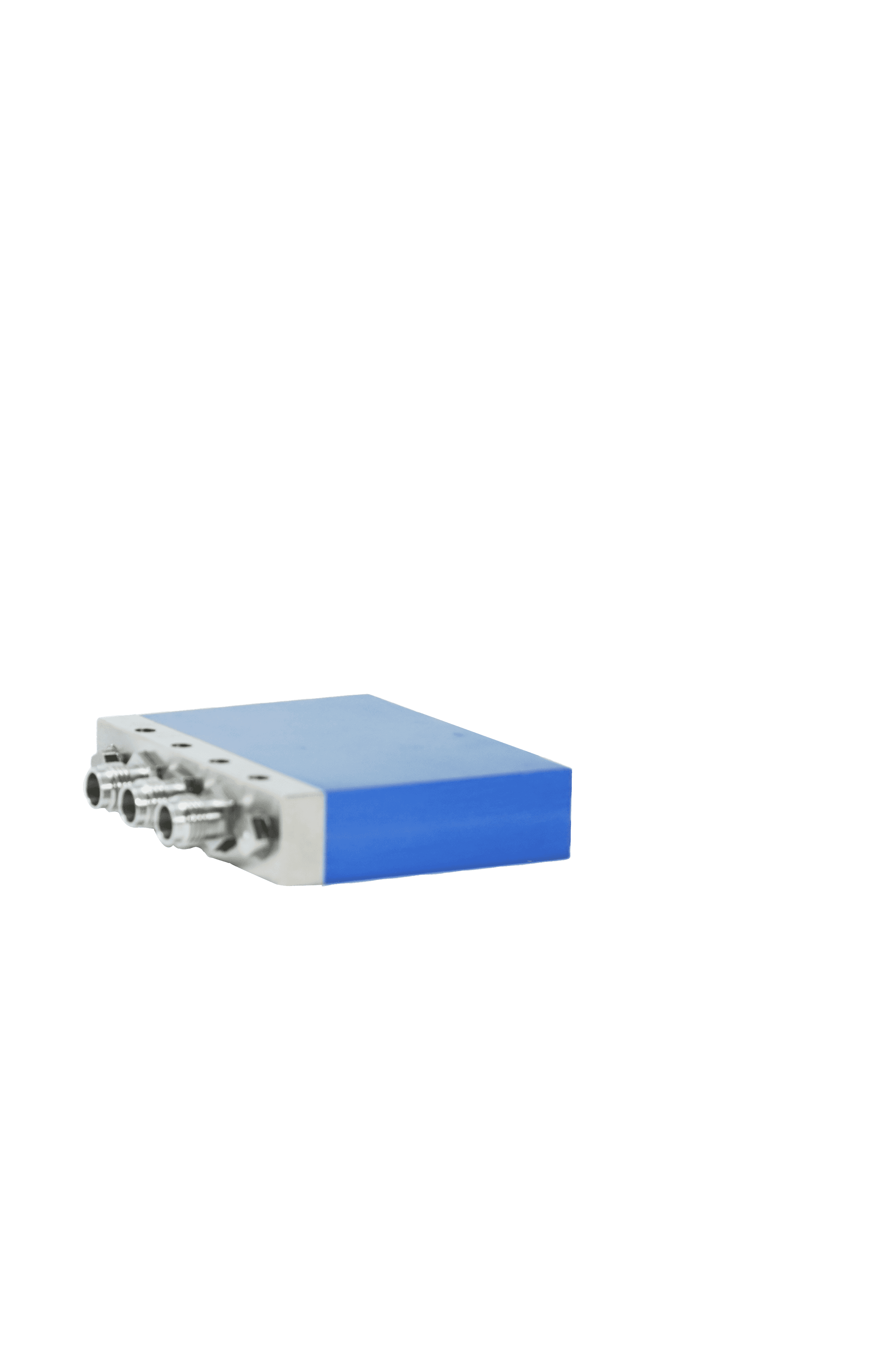

SPDT Loaded Coaxial Switch (DC–50 GHz)
Broadband SPDT loaded coaxial switch covering DC–50 GHz with ≤0.7 dB insertion loss, ≥55 dB isolation, and ≤1.6 VSWR at 50 GHz. 2.4 mm Female interface, 0.45 kg, 24 V. Part No. J-000420420.

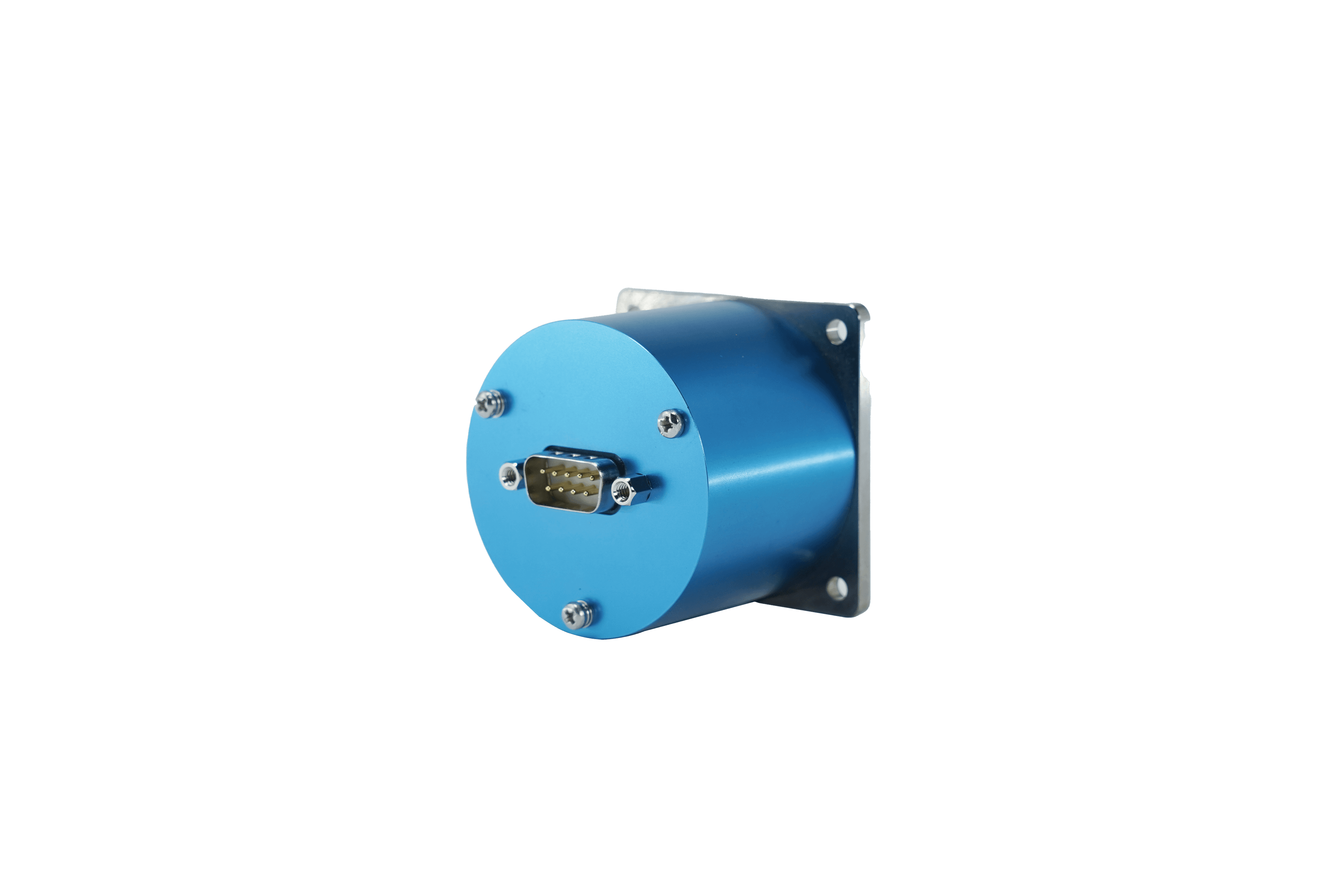

SP6T Loaded Coaxial Switch (DC–67 GHz)
Broadband SP6T loaded coaxial switch covering DC–67 GHz with ≤1.2 dB insertion loss, ≥60 dB isolation, and ≤1.8 VSWR at 67 GHz. 1.85 mm Female interface, 0.5 kg, 28 V. Part No. J-838530420.
